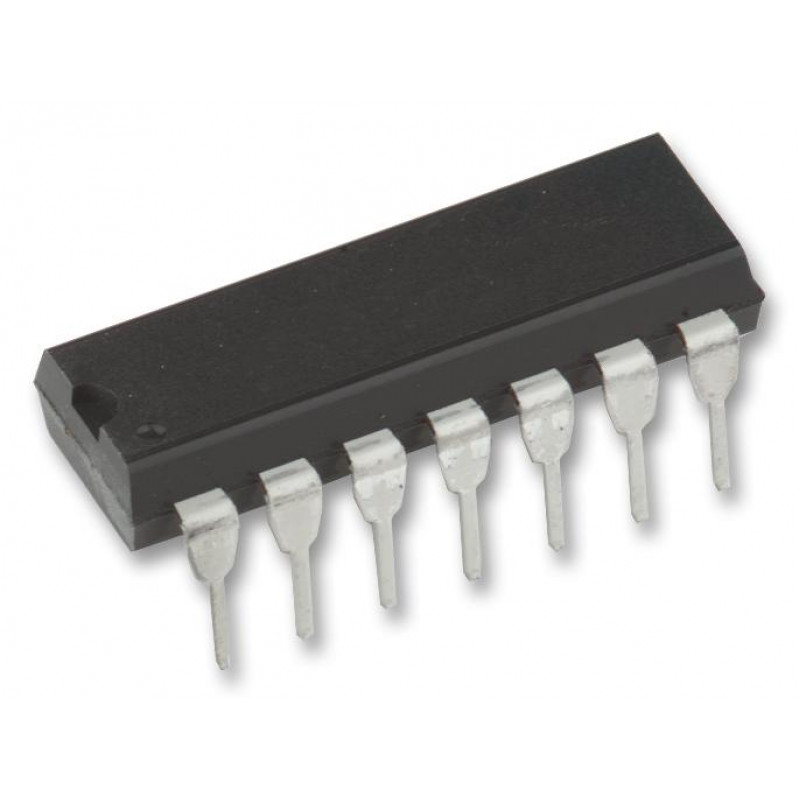

• 74HC00 IC - Quad 2 Input NAND Gate IC (7400 IC)

The 74HC00 is a 14 Pin Quad 2-Input NAND Gate IC. This device contains four independent gates each of which performs the logic NAND function. NAND gates utilize advanced silicon-gate CMOS technology to achieve operating speeds similar to LS-TTL gates with the low power consumption of standard CMOS integrated circuits. All gates have buffered outputs.

All devices have high noise immunity and the ability to drive 10 LS-TTL loads. The 74HC logic family is functionally as well as pin-out compatible with the standard 74LS logic family. All inputs are protected from damage due to static discharge by internal diode clamps to VCC and ground.

Four Independent NAND Gates
14 Pin IC
Operating Temperature to 70 C
High-Speed Low Power CMOS Type


74HC00 IC Datasheet

Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

74HC00 IC - Quad 2 Input NAND Gate IC (7400 IC)

  • Product Code: EC-0050
  • Availability: 2371
  • Rs.15.50
