The 74HC02 is a 14 Pin Quad 2-Input NOR Gate IC. NOR gates utilize advanced silicon-gate CMOS technology to achieve operating speeds similar to LS-TTL gates with the low power consumption of standard CMOS integrated circuits. All gates have buffered outputs, providing high noise immunity and the ability to drive 10 LS-TTL loads. The 74HC logic family is functionally as well as pin-out compatible with the standard 74LS logic family.
All inputs are protected from damage due to static discharge by internal diode clamps to VCC and ground.
- Four Independent NOR Gates
- 14 Pin IC
- Also Available in SMD Type
- Operating Temperature to 70 Deg C
- High-Speed CMOS Type
* Product Images are shown for illustrative purposes only and may differ from actual product.

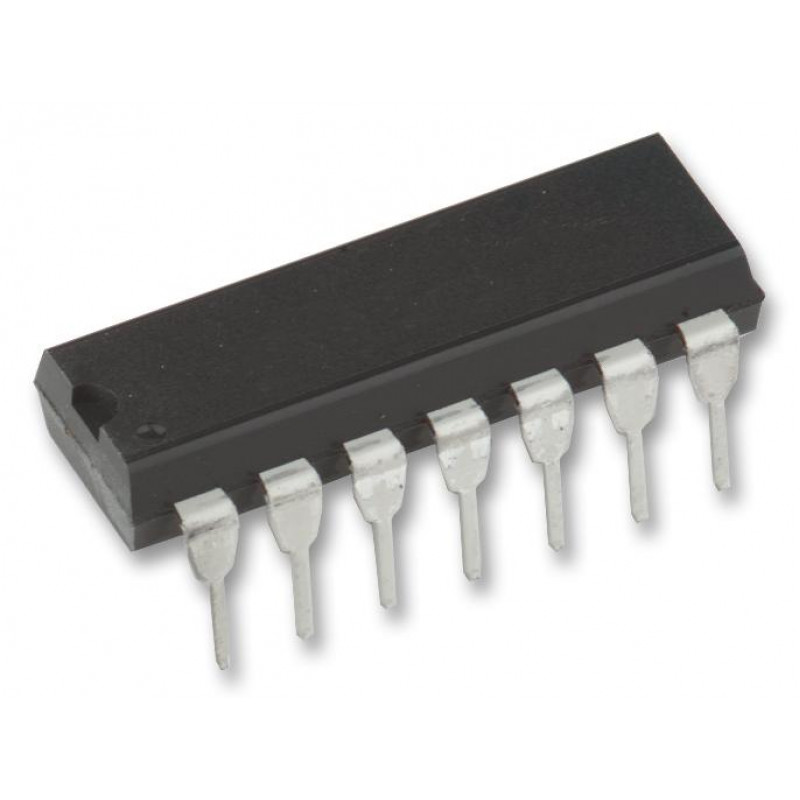

74HC02 IC - Quad 2-Input NOR Gate IC (7402 IC)
- Product Code: EC-0051
- Availability: 1103
