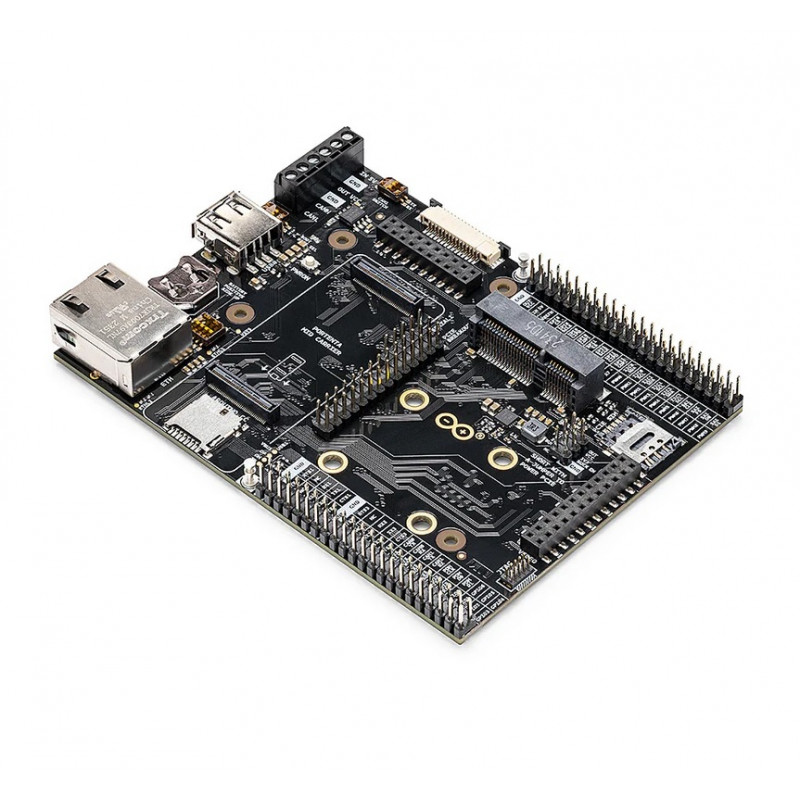

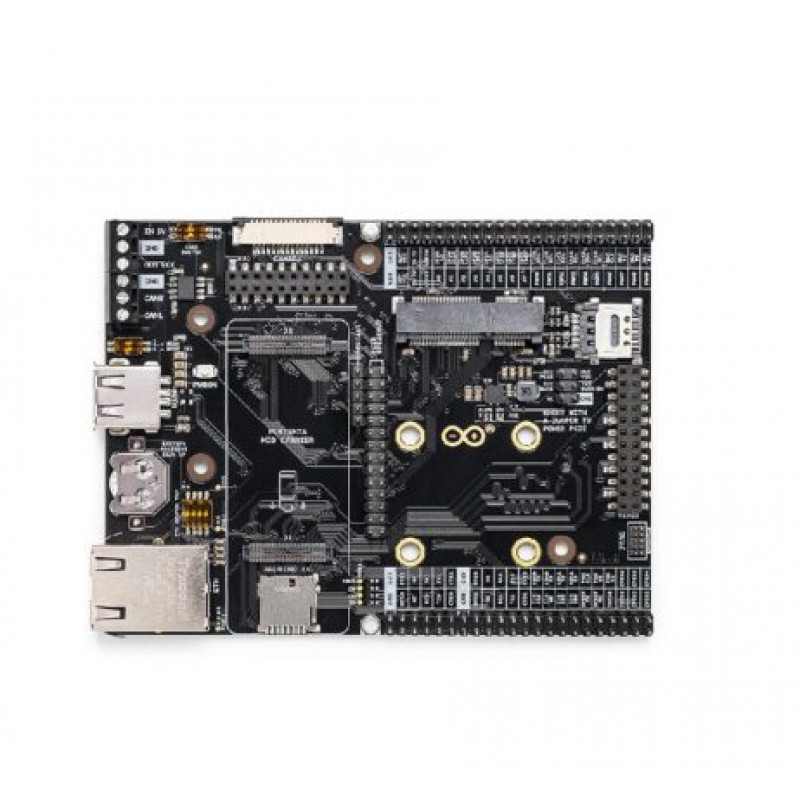

The Arduino Portenta Mid Carrier is a versatile accessory designed to enhance prototyping capabilities for the Portenta C33, H7, or X8 boards. It provides easy access to high-density signals via dedicated headers, enabling the addition of various peripherals such as mini PCIe, dual CAN lines, Ethernet, microSD, USB, and a camera. The carrier also features dedicated debug pins and an RTC battery backup, simplifying development and streamlining project integration. This makes it an essential tool for developers looking to create sophisticated IoT and edge computing solutions.

Note: Refer to datasheet in the ATTACHMENTS section for more info. regd. the product.

Features:

1. Scalable Prototyping Tool: Ideal for expanding Portenta applications with flexibility.
2. High-Density Signal Access: Quick access to all high-density signals of Portenta boards.
3. Multiple Connectivity Options: Expand projects with Ethernet and mini PCIe connectors.
4. MicroSD Card Slot: Boot from an external source for enhanced functionality.
5. CAN Lines for Actuators: Easily interact with actuators using onboard CAN lines (with transceiver support).
6. Camera Connectors: Develop industrial machine vision solutions with integrated camera connectors.
7. Reference Design: Simple design to facilitate the development of proprietary hardware features.

Specification:

1. SOM Socket:Portenta high density connectors2
2. USB : 1x USB Type-A connector
3. Ethernet: Gigabit Ethernet on RJ45
4. Memory: 1x microSD slot
5. mPCIe: 1x mini PCIe connector
6. Camera: 1x MIPI camera connector and 1x Arducam camera connector.
7. CAN Interfaces: 1x CAN and 1x FD-CAN
8. Battery: 1x RTC LiPo battery slot
9. Display : 1x Arduino GIGA Display Shield connector
10. Debugging: Onboard JTAG pins
11. Headers: 2x 44-pin headers
12. Dimensions: 114 mm x 86.5 mm.
13. Interfaces: UART, IC, SPI, PDM, SAI, GPIO, PWM, and Analog I/O.

Package Includes:

1 x Arduino Portenta Mid Carrier ASX00055
