This is SKYRC E3 AC 2S / 3S Li-Po Battery Charger (V2) (Original), it takes 100-240V, good for any country in the world. There are no buttons on the charger, so simply wait for the chargers green lights to come on, which means the battery is ready. It takes about 1-1.5 hours to charge an 11.1V 2200mah Li-Po Battery Pack.
Charge Status LED:
| LED Indicator | Charger Status |
| LED stays green and flashes red | The charger is ready to charge |
| LED glows constant red | The charger is charging |
| LED glows constant green | The charging process finishes |
Error Message:
| All LEDs flashes red once and stop 1 second in cycle | The battery connects incorrectly |
| All LEDs flashes red twice and stop 1 second in cycle | The charger encounters overload or short circuit |
| All LEDs flashes red four times and stop 1 second in cycle | The voltage of a single cell is too high or too low |
| All LEDs flashes red six times and stop 1 second in cycle | There is a 300mv difference of voltage between a battery pack |
Features:
- Version 2.0.
- Input: AC 110V-240V AC.
- Dimension approx: 88 X 57 X 35mm.
- Cell count range: 1-3 cells.
- Max Charge Current: 1.5A.
- Operational mode display: via 3 Leeds.
Package Includes:
1 x SKYRC E3 AC 2S / 3S Li-Po Battery Charger (V2) (Original).

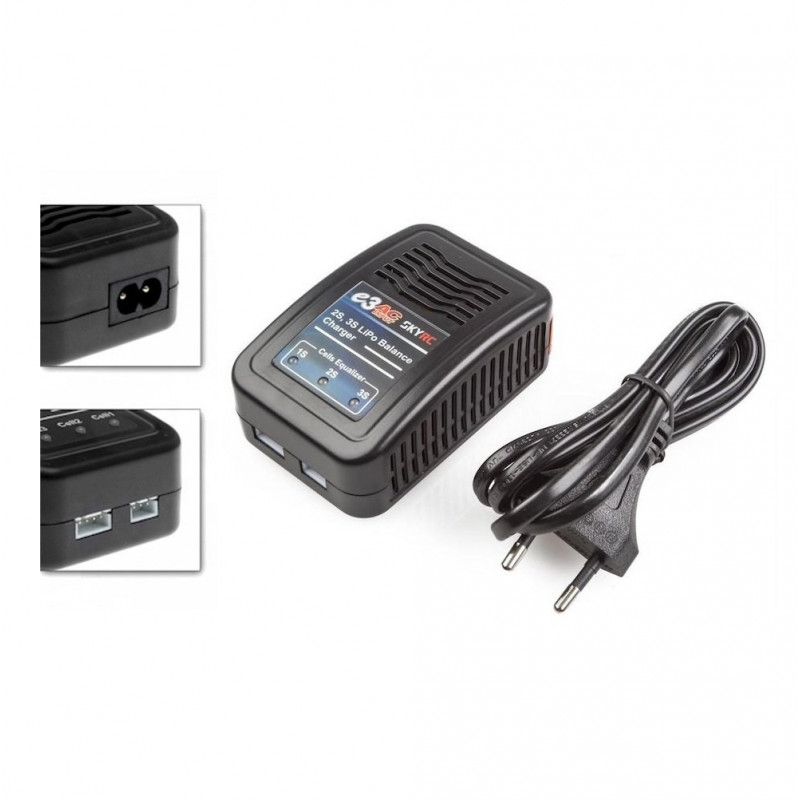

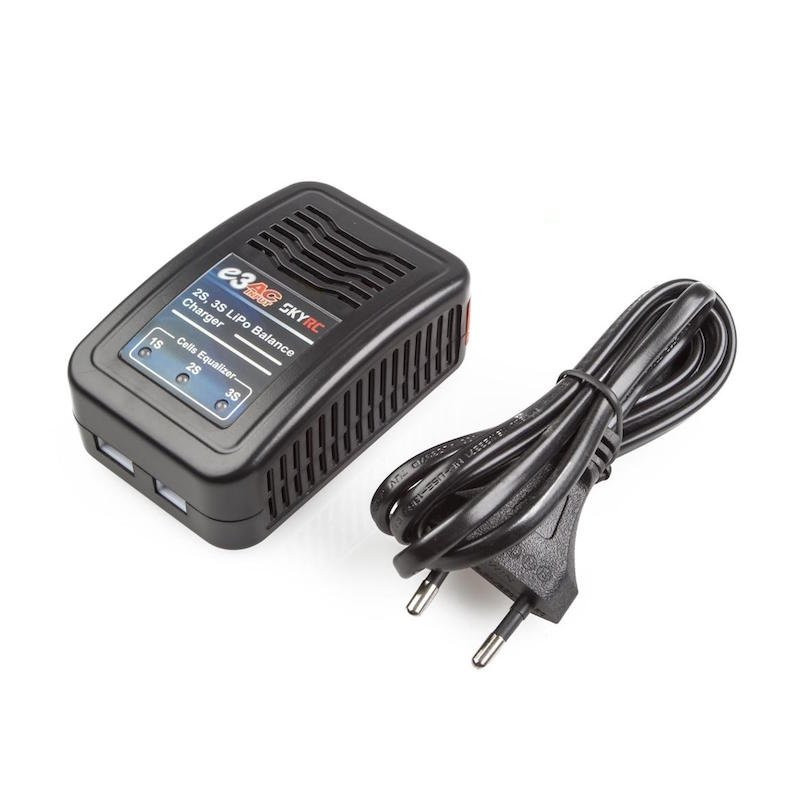

1 x AC Power Cord (Indian Plug)
Specifications:
| Input Voltage (V AC) | 100 ~ 240 |
| Output Power(Watt) | 11W 10% |
| Charge Current Range (A) | 0.1 ~ 1.2 |
| Li-ion/Po cell count | 2 ~ 3 |
| Dimensions (mm) LxWxH | 88 x 57 x 35 |
| Weight (gm) | 103 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 1414.82 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
SKYRC E3 AC 2S-3S Li-Po Battery Balance Charger V2 - Original
- Product Code: EC-7277
- Availability: Out Of Stock
-
Rs.2499.00
- (Excluding 18% GST)
