The Arduino MKR Vidor 4000 brings Arduinos ease of use to the work with the most powerful reprogrammable chips that exist: FPGAs. With Vidor, you can create a board where all pins are PWM signals controlling the speed of motors. You can capture sound in real-time and make a sound effect pedal for your guitar. It is possible to create a real-time computer reading sensor information and sending it to a state-of-the-art monitor or capture video and overlay sensor information on the image that will then later be sent over to a screen. You can connect to the Arduino IoT Cloud and control a complex laboratory machine running a large number of motors. You could even prototype your own processors inside the FPGA and have them work in parallel to the other microcontroller on the board. Vidor is a device that invites experimentation, precision, and high-speed computation.

The board comes with 8 MB of SRAM to support the FPGA operations on video and audio. The FPGA code is stored in a 2 MB QSPI Flash chip, of which 1 MB is allocated for user applications. It is possible to perform high-speed DSP operations for audio and video processing. Therefore, the Vidor includes a Micro HDMI connector for audio and video output and a MIPI camera connector for video input. All of the boards pins are driven both by SAMD21 and FPGA while respecting the MKR family format.


Features:

  1. All pins are PWM pins
  2. MIPI camera connector
  3. Mini PCI Express port with programmable pins
  4. Full-Speed USB Device and embedded Host


FPGA Block Specifications:

  1. FPGA: Intel Cyclone 10CL016
  2. PCI: Mini PCI Express port with programmable pins
  3. Camera Connector: MIPI camera connector
  4. Circuit Operating Voltage: 3.3V
  5. Digital I/O Pins: 22 headers + 25 Mini PCI Express
  6. PWM Pins: All Pins
  7. UART: Up to 7 (depends on FPGA configuration)
  8. SPI: Up to 7 (depends on FPGA configuration)
  9. I2C: Up to 7 (depends on FPGA configuration)
  10. Analog Input Pins: n/a
  11. Analog Output Pins: n/a
  12. External Interrupts: n/a
  13. DC Current per I/O Pin:4 or 8 mA
  14. Flash Memory:2 MB
  15. SDRAM: 8 MB
  16. EEPROM: n/a
  17. Clock Speed:48 MHz up to 200 MHz
  18. Video Output: Micro HDMI


Package Includes:

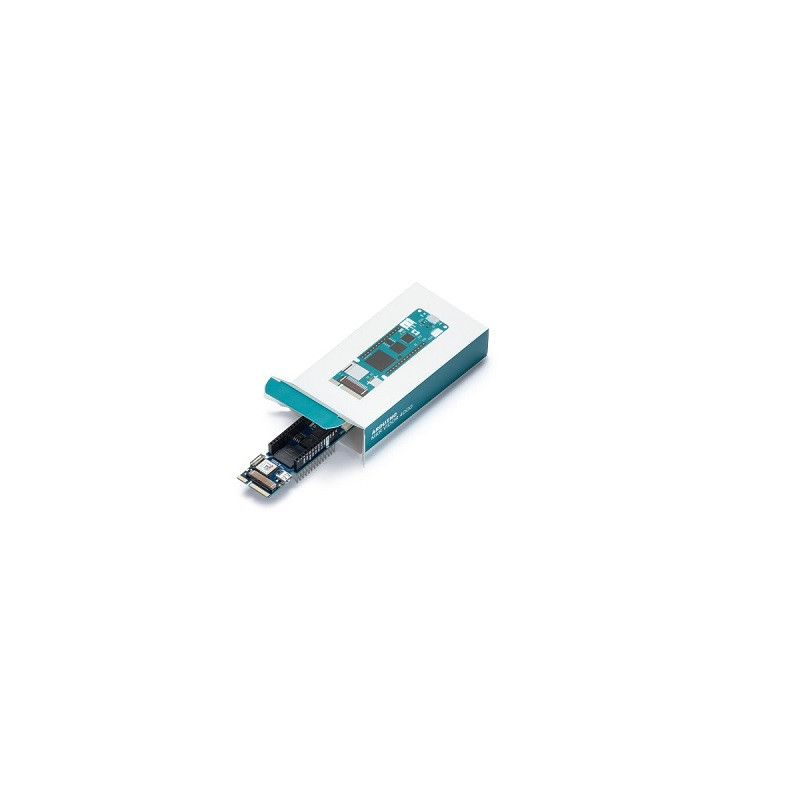

1 x Arduino MKR Vidor 4000



Specifications :-

Microcontroller Chip

SAMD21 Cortex-M0+ 32bit low power ARM MCU

Operating Voltage (VDC)

3.3

Input Voltage(Recommended)

5 V

Analog I/O Pins

Input Pins:7
Output Pins:1

Digital I/O Pins

8

PWM Digital I/O Pins

13

Clock Speed

32.768 kHz (RTC), 48 MHz

Flash Memory

256 KB (internal)

SRAM

32 KB

DC Current per I/O Pin (mA)

7

Dimensions in mm (LxWxH)

83x25x2

Weight (gm)

43



Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 8907.82 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

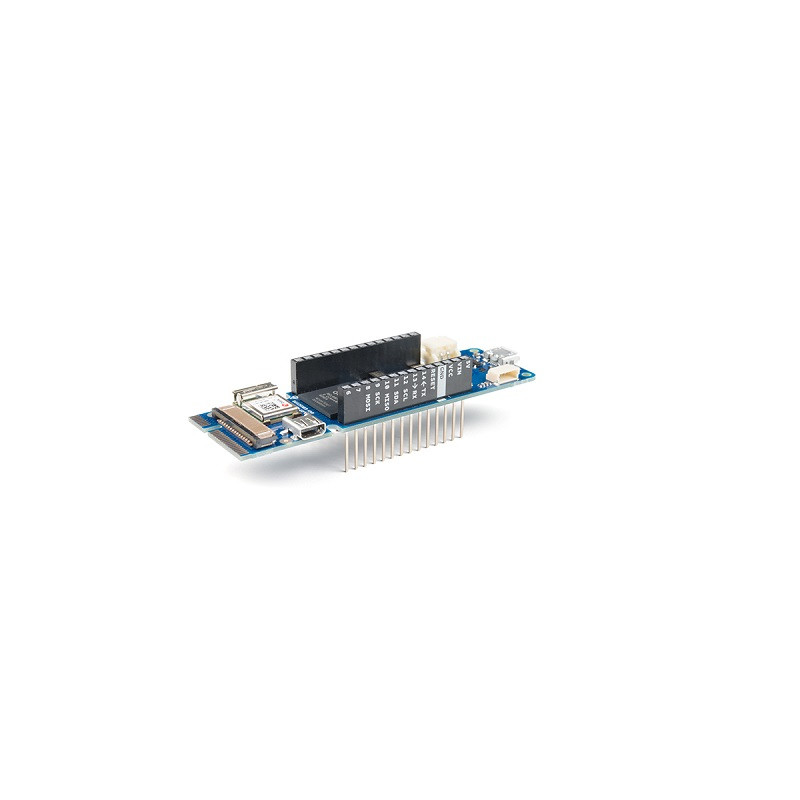

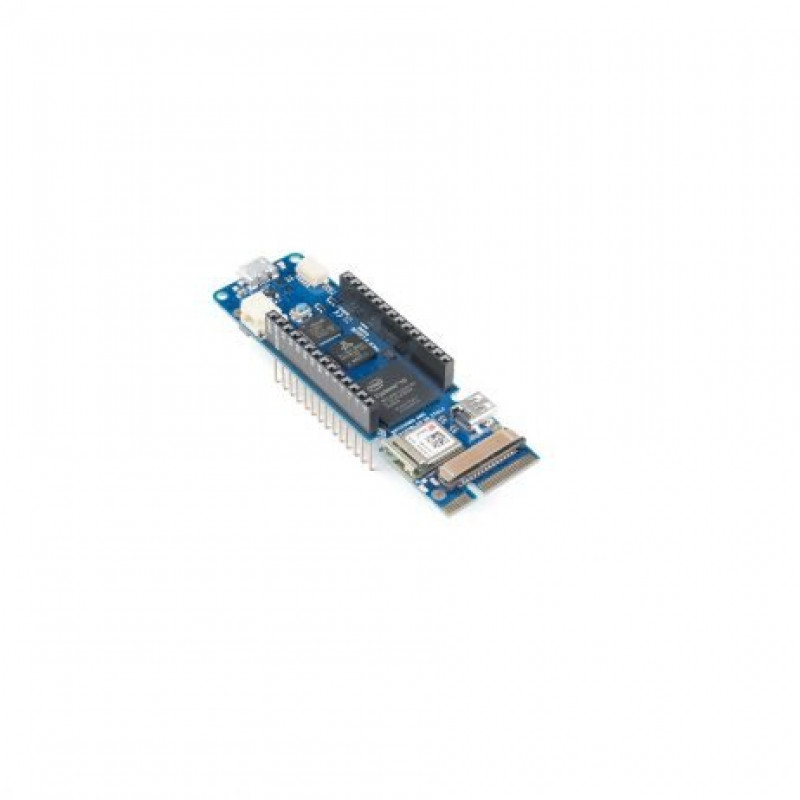

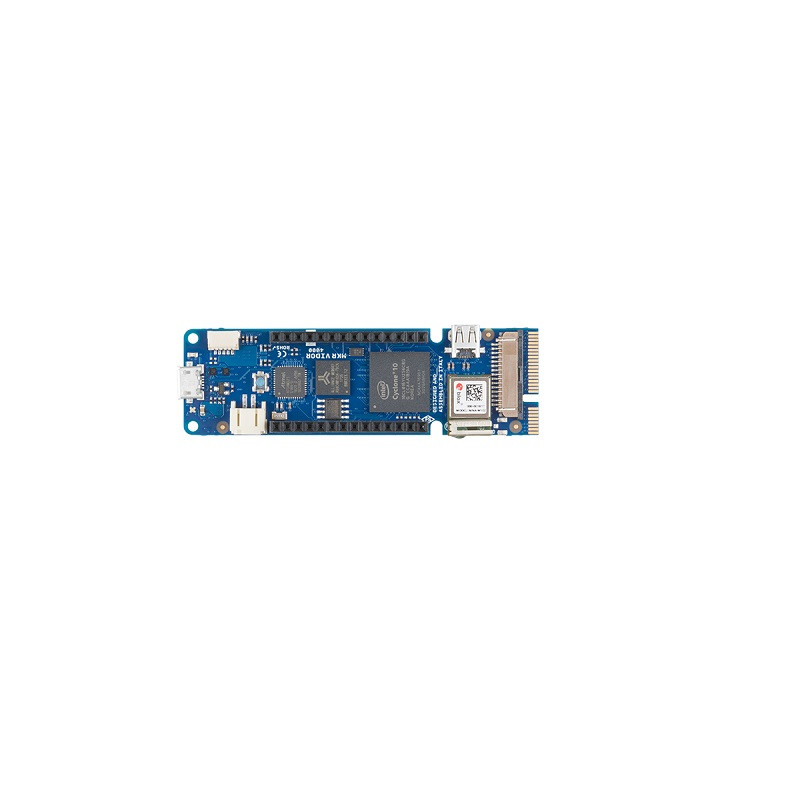

Arduino MKR Vidor 4000
