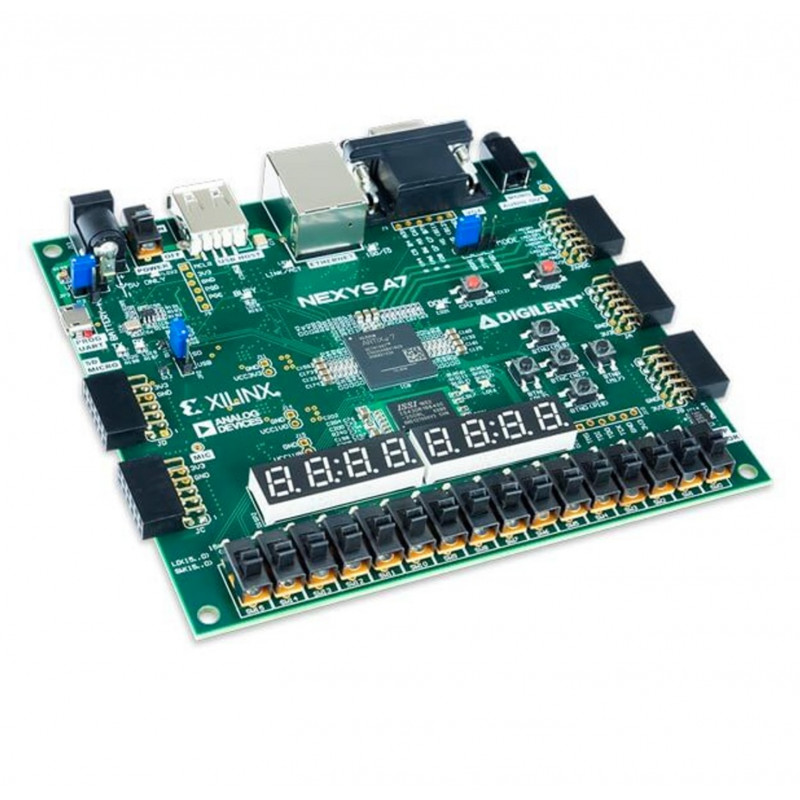

  • Digilent Nexys A7: FPGA Trainer Board Recommended for ECE Curriculum

The Nexys A7 (previously known as the Nexys 4 DDR) is an incredibly accessible, yet powerful, FPGA development board. Designed around the Xilinx Artix-7 FPGA family, the Nexys A7 is a ready-to-use digital circuit development platform that brings industry applications into the classroom environment.Please note:The Nexys A7-50T variant was discontinued and is no longer available for purchase.

Students can start learning right away with the Nexys A7 thanks to its versatile selection of interfaces, such as 10/100 Ethernet, USB, UART, JTAG, and VGA. With a built-in temperature sensor, microphone, and accelerometer, students can work on a variety of projects without needing any additional hardware. Of course, 5 Pmod ports are available for additional customizability and applications.

The Nexys A7-100T features the XC7A100T-1CSG324C.

The Nexys A7 is supported by Xilinxs Vivado Design Suite, along with the free WebPACK edition, which helps keep costs down for students.

The Nexys A7 can be programmed with Digilents Adept software. Digilent Adept is a unique and powerful solution that allows you to communicate with Digilent system boards and a wide assortment of logic devices. Find out more about Adept here.


Features:

  1. FPGA Features
    1. Internal clock speeds exceeding 450MHz
    2. On-chip analog-to-digital converter (XADC)
    3. Programmable over JTAG and Flash
  2. System Features
    1. USB-JTAG programming circuitry
    2. 16 MB QSPI Flash
      1. Due to supply chain constraints, either the S25FL127S or S25FL128S Flash Memory may be loaded on your board. These parts are not functionally equivalent, but flash programming through Vivado and the QSPI boot mode are not affected. More information can be found in the Nexys A7 Reference Manual, available in the Support tab.
    3. Powered from USB or any 7V-15V source
    4. microSD card connector
  3. System Connectivity
    1. 10/100 Mbps Ethernet
      1. Note: Xilinx-provided software support for the Nexys A7s ethernet interface is limited in versions of Vivado 2019.2 and newer. For more information, see the Ethernet PHY section of the Nexys A7 reference manual, which can be found through theSupporttab.
    2. USB-UART Bridge
  4. Interaction and Sensory Devices
    1. 3-axis accelerometer
    2. PDM microphone
    3. PWM audio output
    4. Temperature Sensor
    5. 2 four-digit seven-segment displays
    6. USB HID for mice, keyboards, and memory sticks
    7. 16 Switches
    8. 16 LEDs
    9. 2 tri-color LEDs
    10. 12-bit VGA output
  5. Expansion Connectors
    1. 4 Pmod connectors
    2. Pmod for XADC signals
  1. Product Compliance:
    1. HTC:8471500150
    2. ECCN:5A992.c

Package Includes:

1 x Digilent Nexys A7 FPGA Trainer Board

1 x Micro USB cable


Attachments :


Download
Download
Brand/Manufacturer Generic
Country Of Origin China
