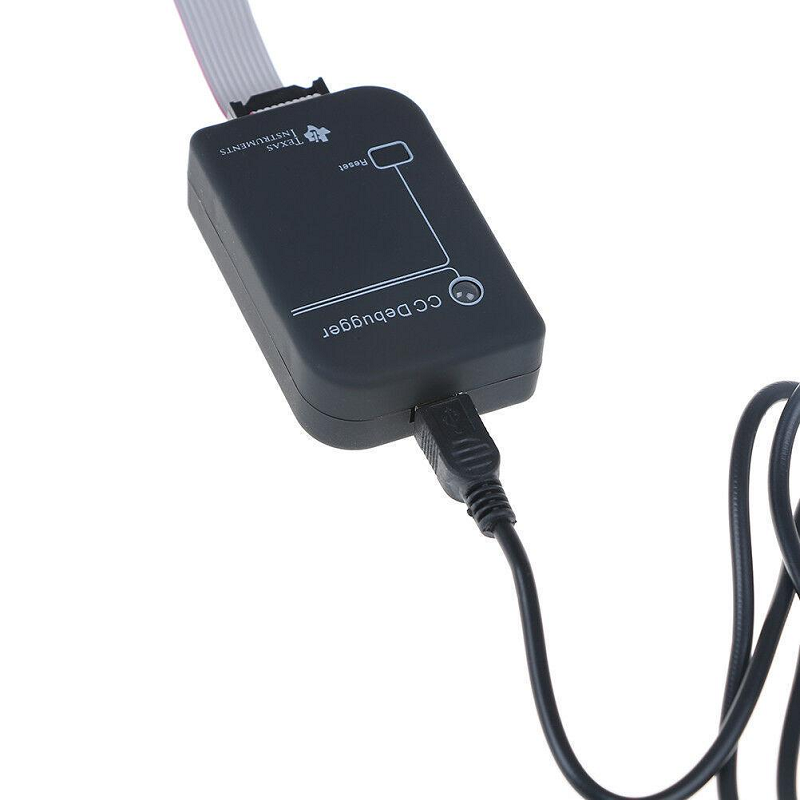

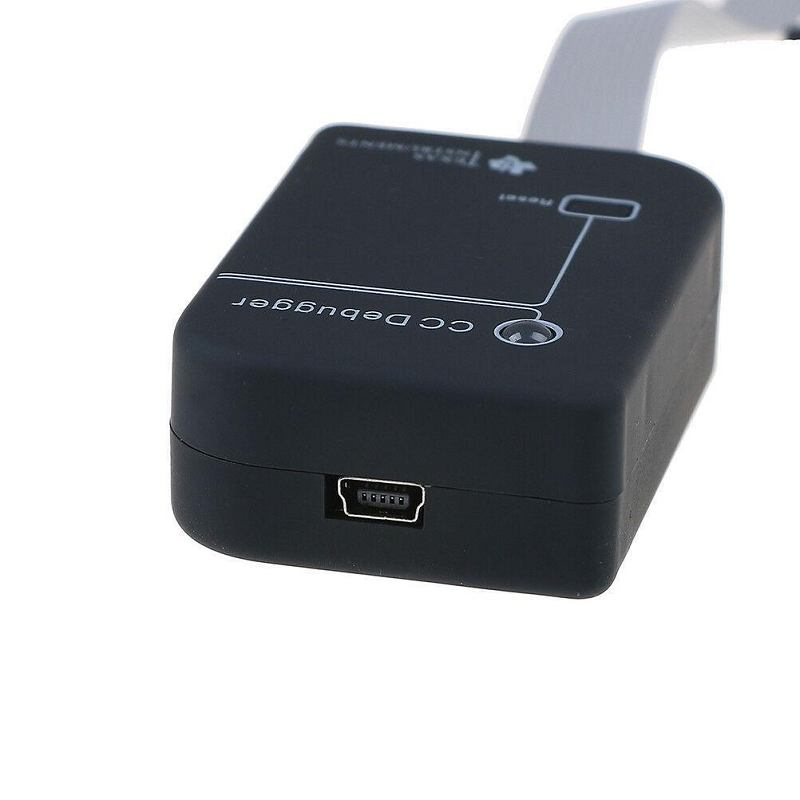

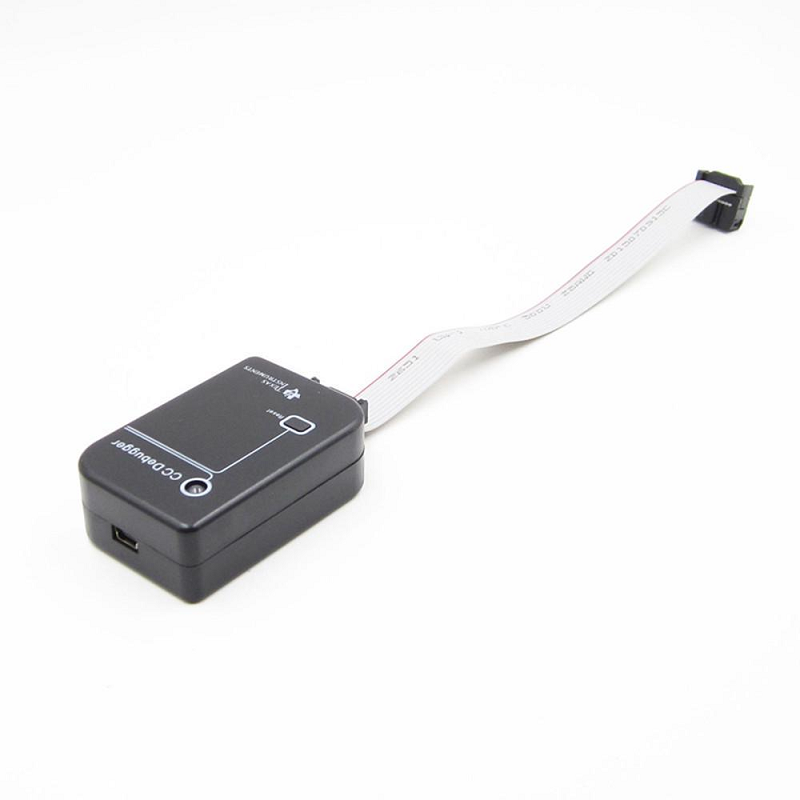

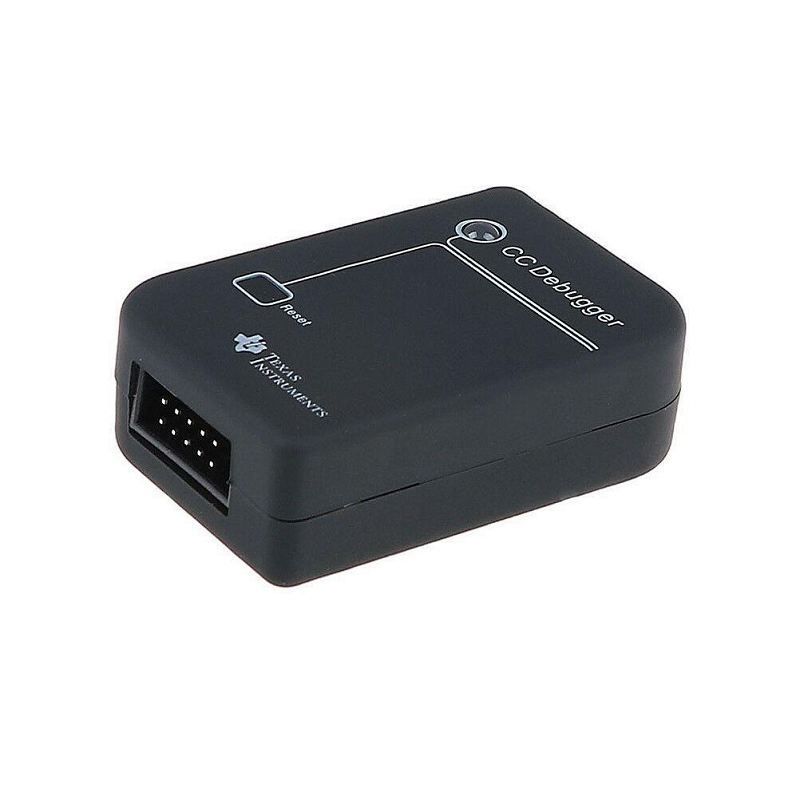

The CC Debugger is a small programmer and debugger for the TI Low Power RF System-on-Chips. It can be used together with IAR Embedded Workbench for 8051 (version 7.51A or later) for debugging and SmartRF Flash Programmer for flash programming. The CC Debugger can also be used for controlling selected devices from SmartRF Studio.
Features:
- CC-Debugger can be used to program and debug the following 8051-based system-on-chips from Texas Instruments:
- CC1110, CC1111
- CC2430, CC2431
- CC2510, CC2511
- CC2530, CC2531, CC2533
- CC2540, CC2541
- CC2543, CC2544, CC2545
2.It is possible to control the same devices from SmartRF Studio. In addition, CC-Debugger can control the following transceivers from SmartRF Studio:
- CC1120, CC1121, CC1125, CC1175
- CC1100, CC1101, CC110L, CC113L, CC115L
- CC2500, CC2520
3.It can also be used to program the PurePath Wireless devices:
- CC8520, CC8521
- CC8530, CC8531

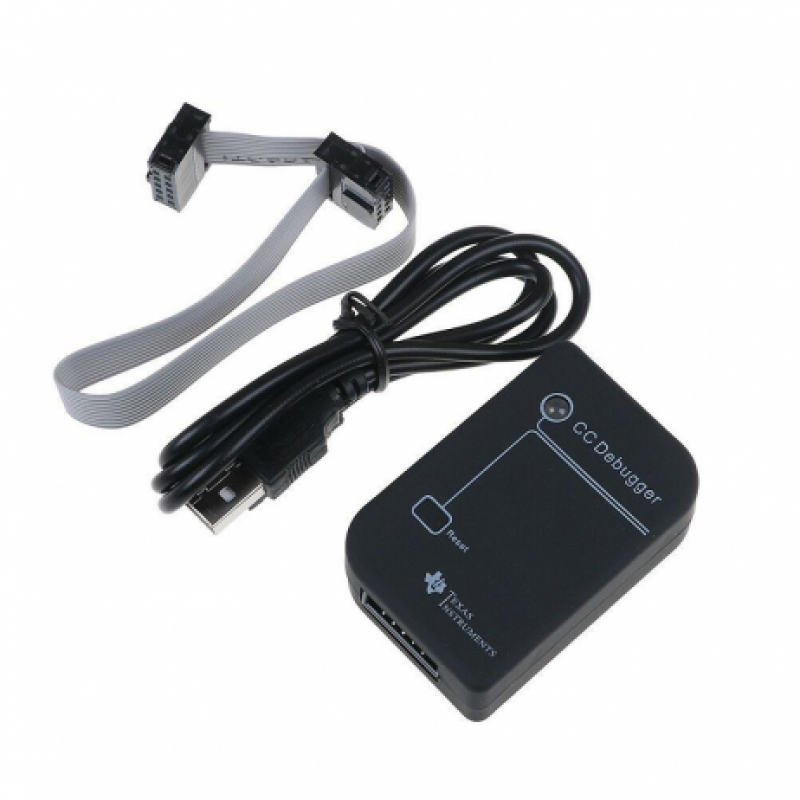

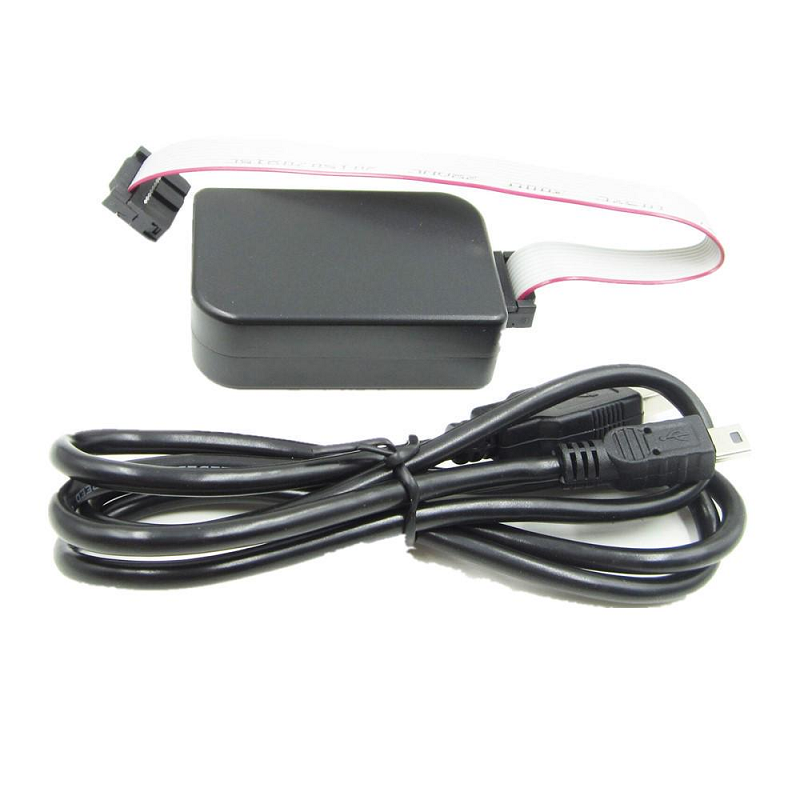

Package Includes:
1 x CC Debugger
1 x USB cable

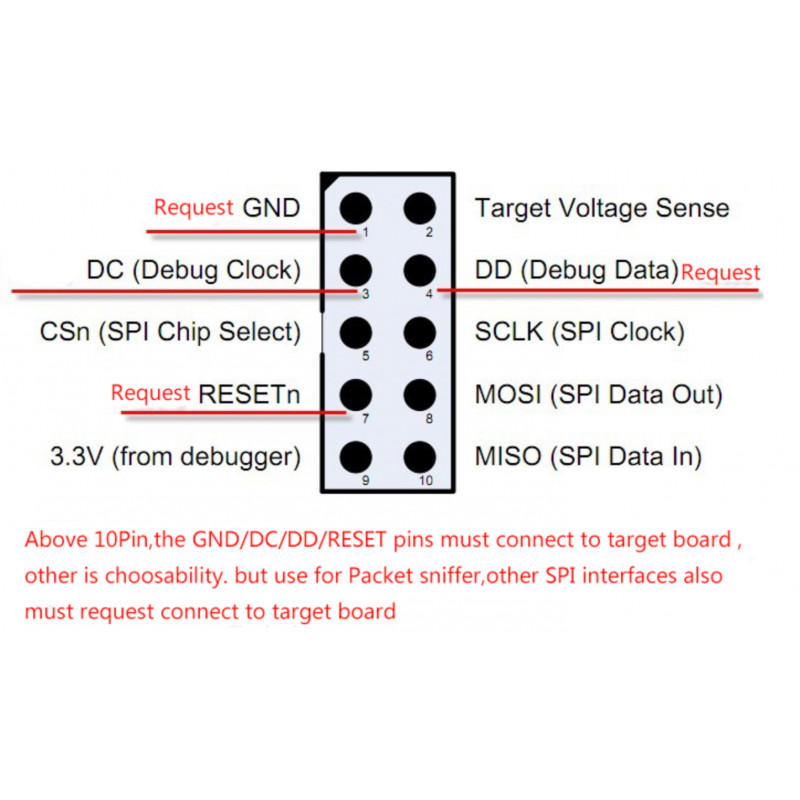

1 x 10Pins flat cable
Specifications :-
| Minimum Target Voltage | 1.2V |
| Maximum Target Voltage | 3.6V |
| Operating Temperature | 0C to 85C |
| Regulated Voltage on CC Debugger | 3.3V |
| Maximum Target Current | 200mA |
| Supported Operating Systems | Windows 7 |
| Length (mm) | 40 |
| Width (mm) | 60 |
| Height (mm) | 15 |
| Weight (gm) | 25 |
| Brand/Manufacturer | |
| Country Of Origin | |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 1414.82 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
CC-DEBUGGER - Programmer for RF Sys-on-Chips
- Product Code: EC-7598
- Availability: 2
-
Rs.1029.00
- (Excluding 18% GST)
