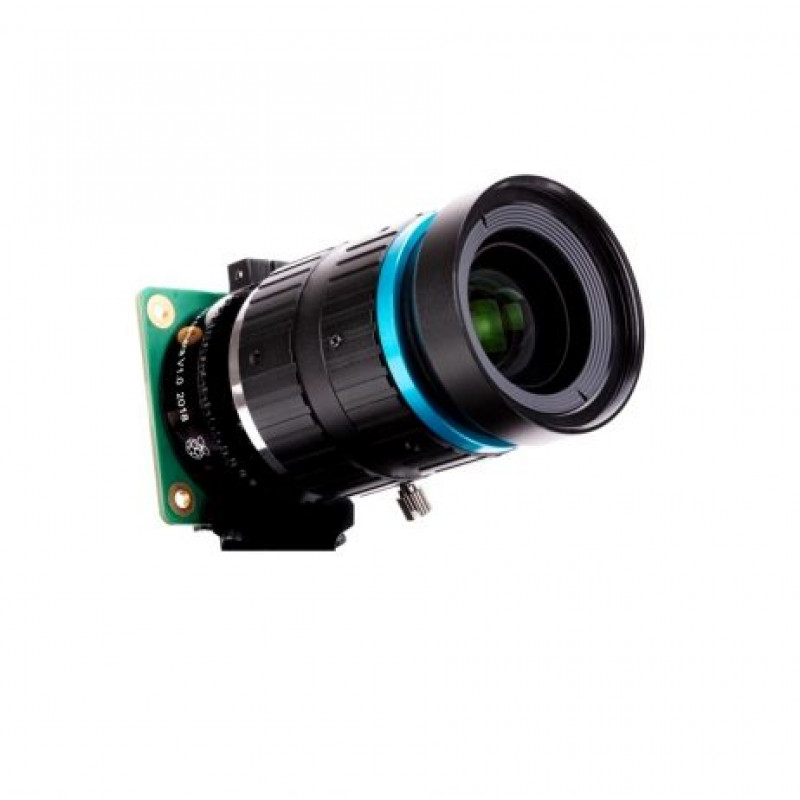

The 16 mm lens provides a higher quality image than the 6 mm lens. It has a narrow-angle view which is more suited to viewing distant objects. Ensure the C-CS adapter that comes with the High-Quality Camera is fitted to the lens. The lens is a C-mount device, so it has a longer back focus than the 6 mm lens and therefore requires the adapter. Rotate the lens and C-CS adapter clockwise all the way into the back focus adjustment ring.

The back focus adjustment ring should be screwed in fully. Use the back focus lock screw to make sure it does not move out of this position when adjusting the aperture or focus. To adjust the aperture, hold the camera with the lens facing away from you. Turn the inner ring, closest to the camera, while holding the camera steady. Turn clockwise to close the aperture and reduce image brightness. Turn anti-clockwise to open the aperture. Once you are happy with the light level, tighten the screw on the side of the lens to lock the aperture into position.

To adjust focus, hold the camera with the lens facing away from you. Turn the focus ring, labeled “NEAR FAR”, anti-clockwise to focus on a nearby object. Turn it clockwise to focus on a distant object. You may find you need to adjust the aperture again after this.

Features of 16mm Telephoto Lens for Raspberry Pi High Quality Camera:-

  • High Level of zoom for advanced applications
  • Suitable for Distance photography
  • Thumbscrew Adjustment for easy fitting
  • Front and back covers for protection

Specifications of 16mm Telephoto Lens for Raspberry Pi High Quality Camera:-

Image Format


Focal length



10 Megapixel


F1.4 to F16



Field Angle

1" 44.6°— 33.6°
2/3" 30.0°— 23.2°
1/1.8"€ 24.7°— 18.6°
1/2" 21.8°— 16.4°


1" (-0.7%)
1/2" (-0.5%)
1/3" (-0.15%)



Back focal length


Optical length






Shipment Dimensions

  8 × 8 × 9 cm

Package Includes:

1 x 16mm Telephoto Lens for Raspberry Pi High-Quality Camera

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 5426.82 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

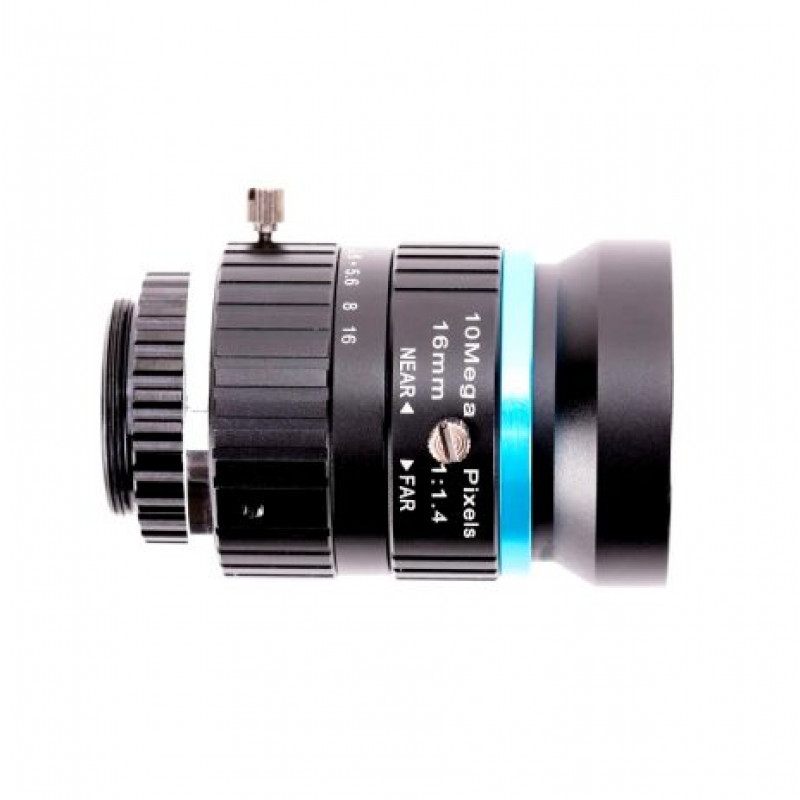

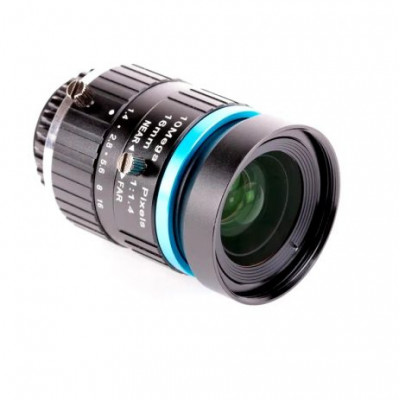

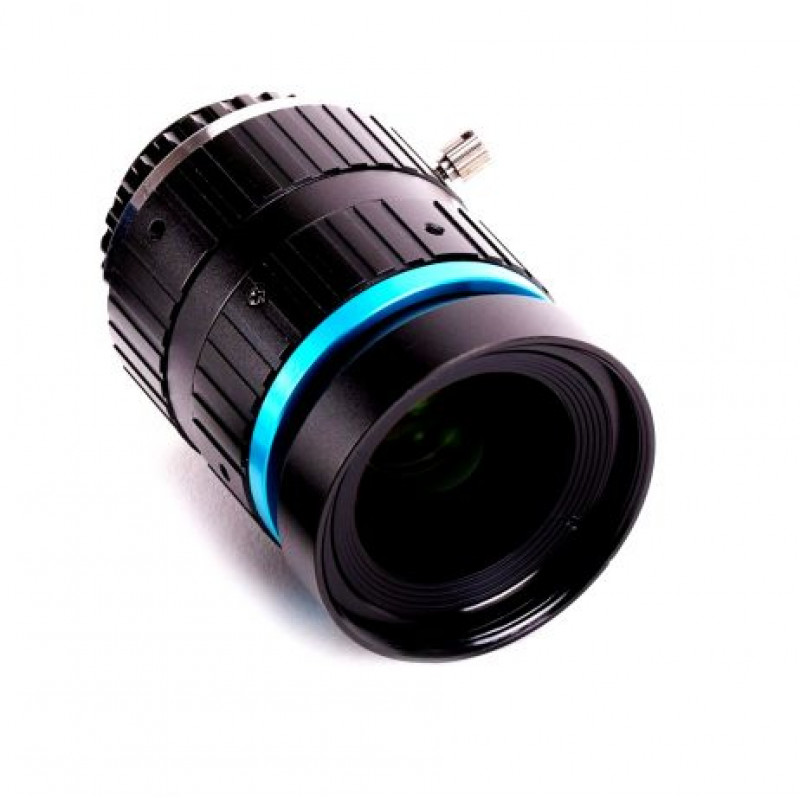

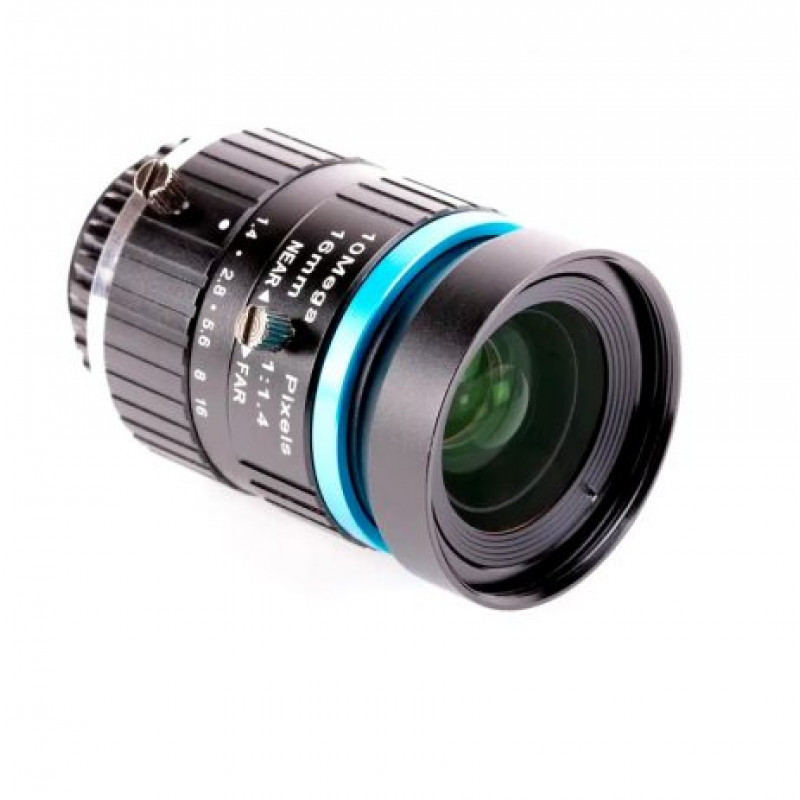

16mm Telephoto Lens for Raspberry Pi High Quality Camera
