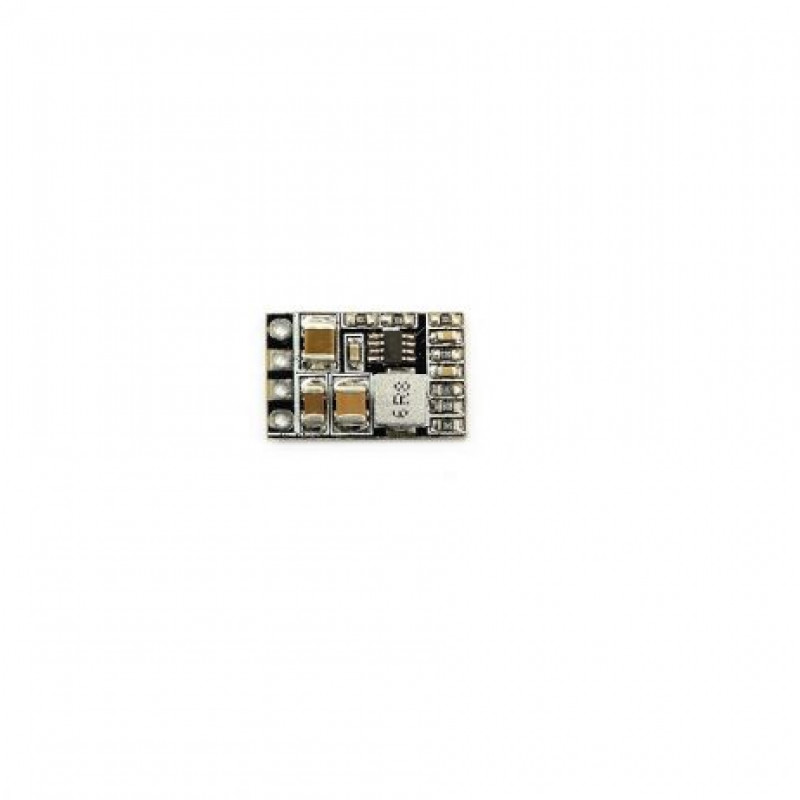

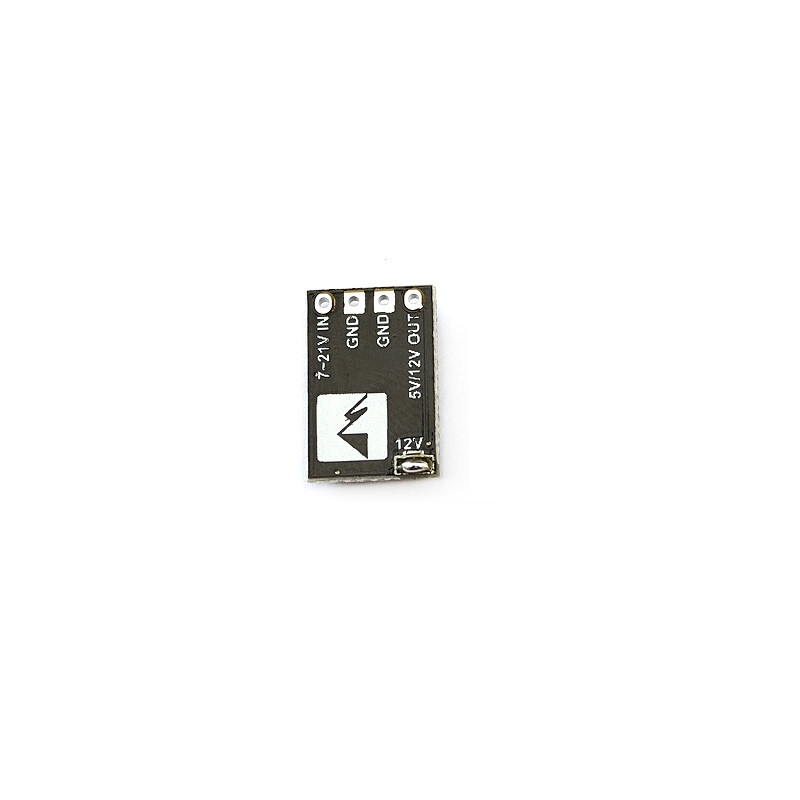

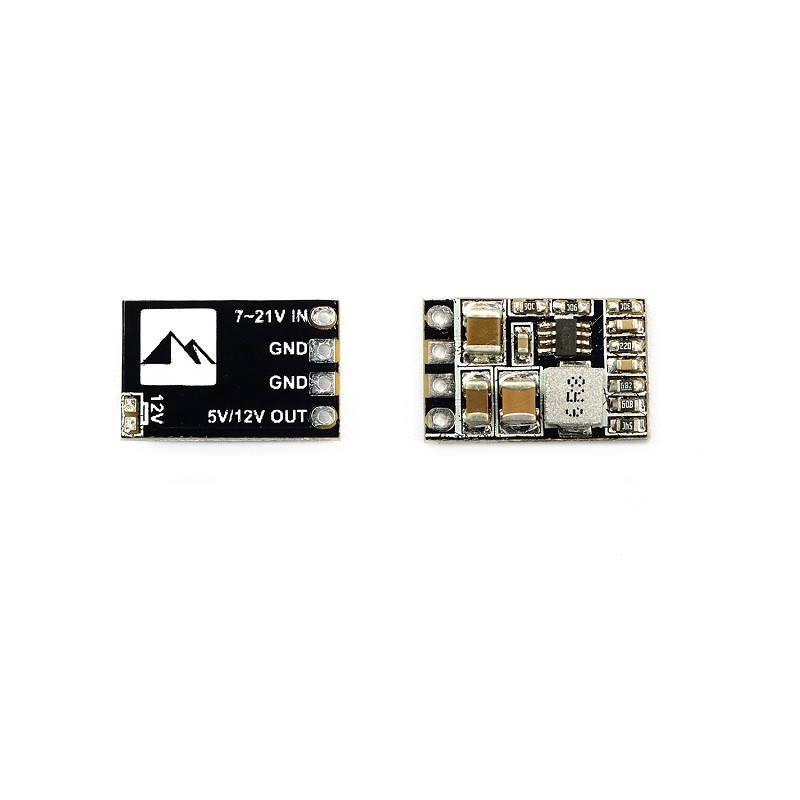

This is a Matek MICRO BEC 5V/12V-ADJ for Quadcopter. It Offers an Output with 5V and 1.5A. And the working Temperature of this is about -45Degree Celcius to 85 Degree Celcius. This circuit is capable to Regulate the High Voltage and Provide Constant Voltage throughout the Circuit Because It has a Voltage Regulator IC.
Features:
- Continuous Current: 1.5A.
- Power Supply: 7-21 V.
- The maximum duty cycle is about 95%.
Package Includes:
1 x Matek MICRO BEC 5V/12V-ADJ
Specifications :-
| Brand | MATEKSYS |
| Input Voltage Range | 6V ~ 30V |
| Continuous Load Current | 1.5 Amps (Max.2.5A 5s/minute) |
| Output Voltage(V) | 5V ~ 9V |
| Vout Load Regulation | 2% |
| Standby Current | <5mA |
| Maximum Duty Cycle | 95% |
| Output Ripple | 20mV (Vin=16V, 12V@5A) |
| Length (mm) | 17 |
| Width (mm) | 11 |
| Height (mm) | 3 |
| Weight (gm) | 1 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 341.02 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Matek MICRO BEC 5V12V-ADJ
- Product Code: EC-8037
- Availability: 30
-
Rs.573.00
- (Excluding 18% GST)
