Here is RS2205 2300KV Brushless DC Motor for QAV250 QAV300 Racing Multicopter. This motor is built from good quality material so as to enhance your flying experiences at a cost that you can never refuse when you will compare this motor with other RS2205 series motors from others.

We have tested this motor at our lab for the quality performance that it can deliver for FPV racing applications.

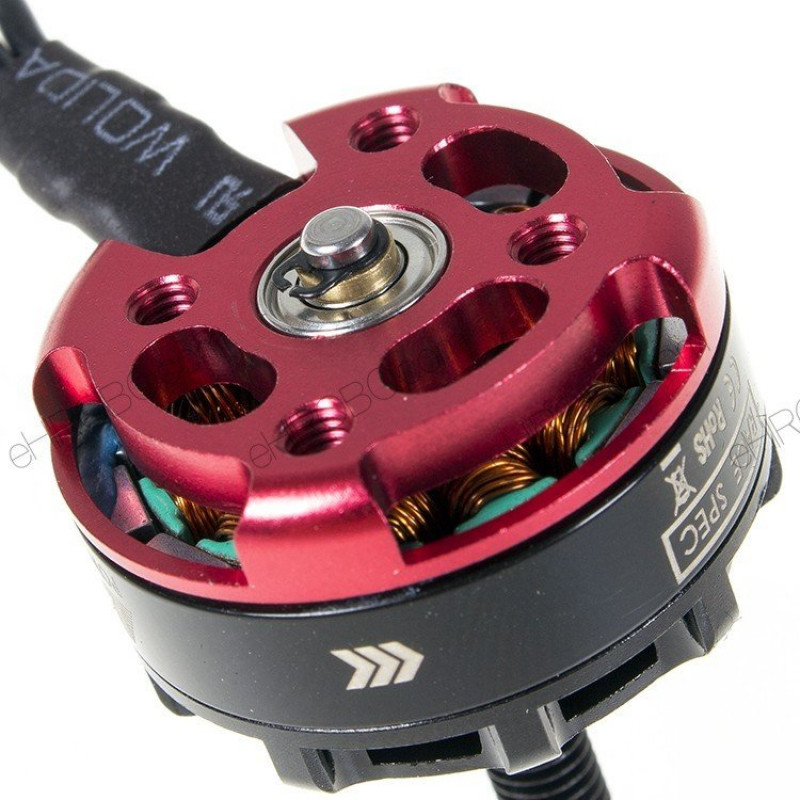

The coolest feature of this motor is self-cooling technique. This RS2205 2300KV Brushless Motor features unique cooling fins that draw up air from the motor base which passes through the motor coils. The faster it spins, the more air it moves. This can reduce the temperature of the motor up to 30% which in turn increases the service life of this BLDC Motor.

The RS2205 2300KV CCW Brushless Motor equips curved high-grade N52 Neodymium Magnets with best operational strength. They have genuine Japanese NMB Bearings for smooth operation. Another thing to consider is the quality enhanced Anti Off U Ring for assuring stable and safe flight.

When coupled with 3S LiPO Battery and Premium 5 Inch Propeller they can give you outstanding acceleration, good stopping power at high RPMs with thrust value around 1kg.

Note: This is CCW rotating BLDC Motor

Features :

1. High Strength N52 Neodymium Magnets
2. Active Cooling Fins Greatly Reduces the operating motor temperature.
3. Low CG and Light Weight Design.
4. Japanese Bearing for providing quality performance.
5. Enhance Anti Off U Ring For safe and stable operational characteristics.

Package Includes :

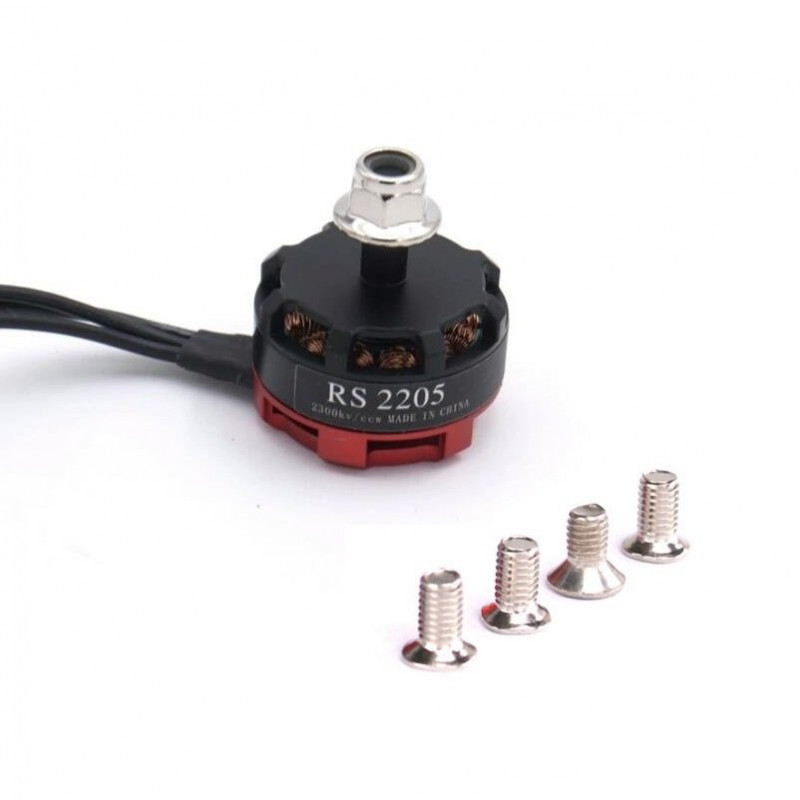

1 x RS2205 2300KV Brushless Motor.

1 x Mounting Screw set.

Note: Images may vary in terms of colour of Motor

Specifications :-

Model	RS2205
Motor KV (RPM/V)	2300
Framework	12N14P
Maximum Thrust (gm)	1024
Compatible LiPO Batteries	3S ~ 4S
Shaft Diameter (mm)	5
Compatible Propellers Size (inch)	5
Length (mm)	27.9
Width (mm)	27.9
Height (mm)	31.7
Weight (gm)	30
