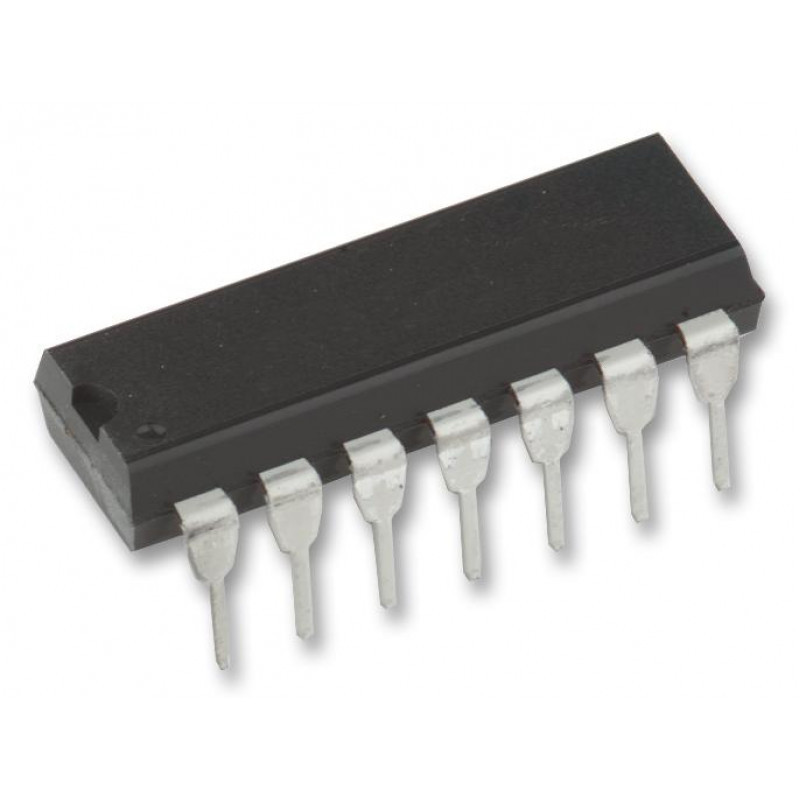

  • 74F393 Dual 4-Bit Binary Ripple Counter IC (74393) DIP-14 Package

The 74F393 is a Dual Ripple Counter with separate Clock (CPn) and Master Reset (MR) inputs to each counter. The two counters are identified by the “a” and “b” suffixes in the pin configuration. The operation of each half of the 74F393 is the same. The counters are triggered by a High-to-Low transition of the Clock (CPa and CPb)inputs. The counter outputs are internally connected to provide Clock inputs to succeeding stages. The outputs of the ripple counter do not change synchronously and should not be used for high speed address decoding. The Master Resets (MRa and MRb) are active High asynchronous inputs; one for each 4-bit counter. A High level in the MR input overrides the Clock and sets the outputs Low


Features :-

  • Two 4-bit binary counters
  • Two Master Resets to clear each 4-bit counter individually


Specifications :-

  • Supply voltage : 4.5V - 5.5V
  • High-level input voltage : 2.0V
  • Low-level input voltage : 0.8V
  • Input clamp current : -18mA
  • High-level output current : -1mA
  • Low-level output current : 20mA
  • Operating free-air temperature range : 70°C



Package Includes :-

1 X 74F393 Dual 4-Bit Binary Ripple Counter IC (74393) DIP-14 Package
