The L297 Stepper Motor Controller IC generates four phase drive signals for two phase bipolar and four phase unipolar step motors in microcomputercontrolled applications. The motor can be driven in half step, normal and wawe drive modes and onchip PWM chopper circuits permit switch-mode control of the current in the windings. A feature of this device is that it requires only clock, direction and mode input signals. Since the phase are generated internally the burden on the microprocessor, and the programmer, is greatly reduced. Mounted in DIP20 and SO20 packages, the L297 can be used with monolithic bridge drives such as the L298N or L293E, or with discrete transistors and darlingtons.
Features:-
- Normal/wave drive
- Half/full step modes
- Clockwise/anticlockwise direction
- Switchmode load current regulation
- Programmable load current
- Few external components
- Reset input & home output
- Enable input
Specifications:-
| Parameter | Value | Unit |
| Vs Supply voltage | 10 | V |
| Vi Input signals | 7 | V |
| Ptot Total power dissipation (Tamb = 70°C) | 1 | W |
| Tstg, Tj Storage and junction temperature | -40 to 150 | °C |
Related Document:-
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 147.5 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

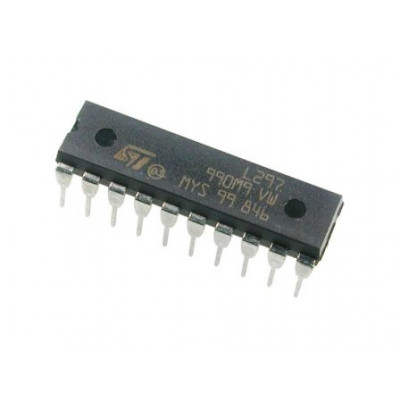

L297 Stepper Motor Controller IC DIP-20 Package
- Product Code: EC-0205
- Availability: 1008
-
Rs.125.00
- (Excluding 18% GST)
