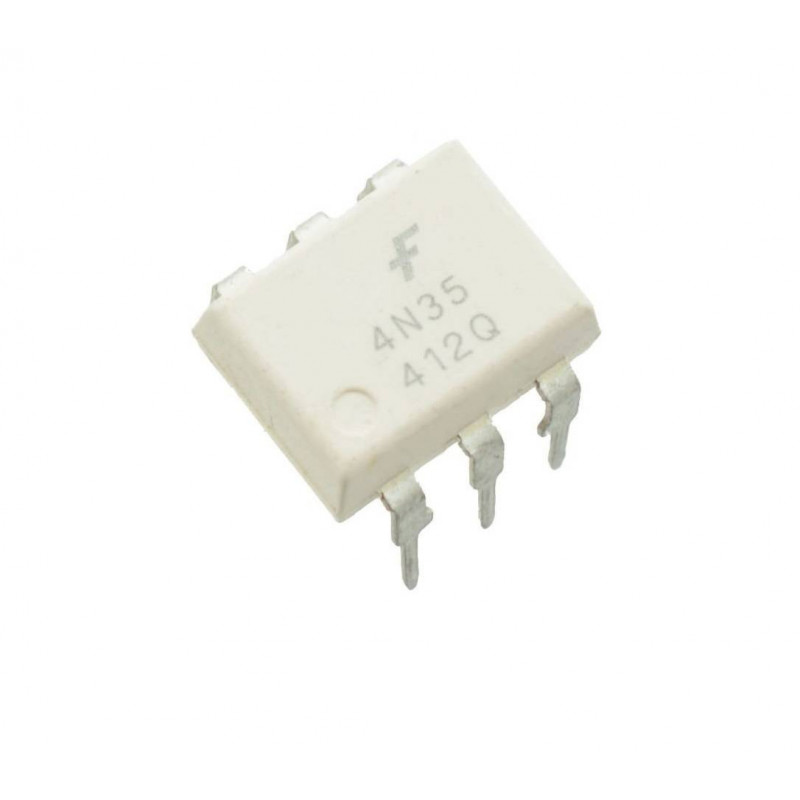

  • 4N35 IC - Optocoupler Phototransistor IC

The 4N35 optocoupler consists of gallium arsenide infrared LED and a silicon NPN phototransistor. The couplers are Underwriters Laboratories (UL) listed to comply with a 5300 VRMS isolation test voltage.

This isolation performance is accomplished through  double molding isolation manufacturing process. Comliance to DIN EN 60747-5-2(VDE0884)/ DIN EN 60747-5-5 pending partial discharge isolation specification is available for these families by ordering option 1.

These isolation processes and the  ISO9001 quality program results in the highest isolation performance available for a commecial plastic phototransistor optocoupler. The devices are available in lead formed configuration suitable for surface mounting and are available either on tape and reel, or in standard tube shipping containers.

Features:-

• Isolation Test Voltage 5300 VRMS

• Interfaces with common logic families

• Input-output coupling capacitance < 0.5 pF

• Industry Standard Dual-in line 6-pin package

Agency Approvals:-

• Underwriters Laboratory File #E52744

• DIN EN 60747-5-2(VDE0884)

   DIN EN 60747-5-5 pending

   Available with Option 1

Applications:-

AC mains detection

Reed relay driving

Switch mode power supply feedback

Telephone ring detection

Logic ground isolation

Logic coupling with high frequency noise rejection

Specification:-

Symbol Parameter Value Unit
VR Reverse voltage 6 V
IF Forward current 60 mA
IFSM Surge current 2.5 A
Pdiss Power dissipation 100 mW
VCEO Collector-emitter breakdown voltage 70 V
VEBO Emitter-base breakdown voltage 7 V
IC Collector current 100 mA
