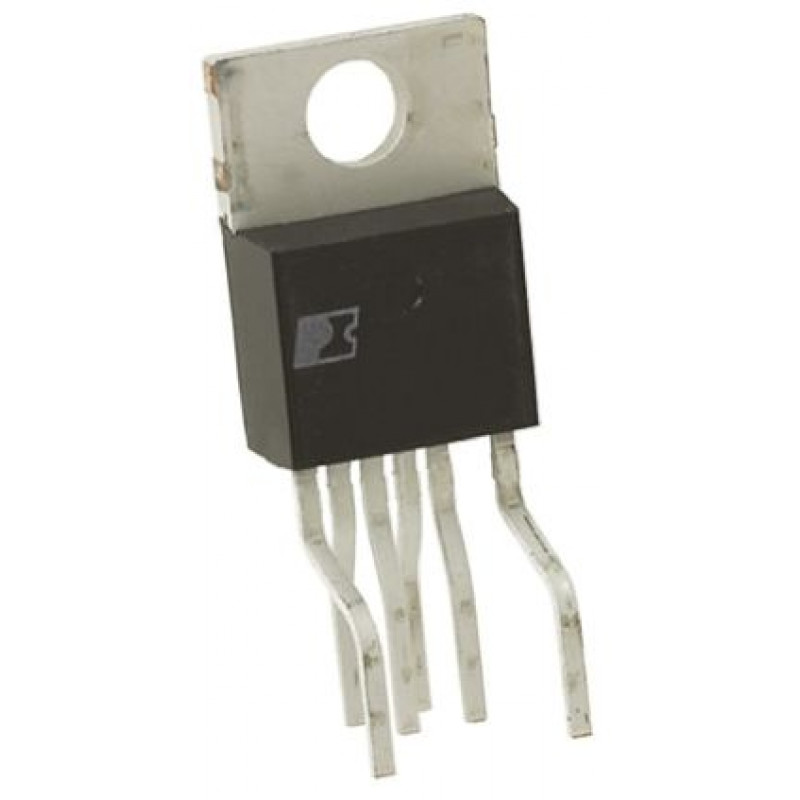

  • TOP245YN IC - Power Integrations - Off Line Switcher IC

TOP245YN belongs to TOPSwitch-GX Family from the manufacturer "Power Integrations". It is with Extended Power, Design Flexiblity, EcoSmart & Integrated Off-line Switcher. TOPSwitch-GX uses the same proven topology as TOPSwitch, cost effectively integrating the high voltage power MOSFET, PWM control, fault protection and other control circuitry onto a single CMOS chip. Many new functions are integrated to reduce system cost and improve design flexibility, performance and energy efficiency. Depending on package type, either 1 or 3 additional pins over the TOPSwitch standard DRAIN, SOURCE and CONTROL terminals allow the following functions: line sensing (OV/UV, line feed-forward/DCMAX reduction), accurate externally set current limit, remote ON/OFF, synchronization to an external lower frequency, and frequency selection (132 kHz/66 kHz). All package types provide the following transparent features: Soft-start, 132 kHz switching frequency (automatically reduced at light load), frequency jittering for lower EMI, wider DCMAX, hysteretic thermal shutdown, and larger creepage packages. In addition, all critical parameters (i.e. current limit, frequency, PWM gain) have tighter temperature and absolute tolerances to simplify design and optimize system cost.


Features:-

  • Lower System Cost, High Design Flexibility
    • Extended power range for higher power applications
    • No heatsink required up to 34 W using P/G packages
    • Features eliminate or reduce cost of external components
    • Fully integrated soft-start for minimum stress/overshoot
    • Externally programmable accurate current limit
    • Wider duty cycle for more power, smaller input capacitor
    • Separate line sense and current limit pins on Y/R/F packages
    • Line under-voltage (UV) detection: no turn off glitches
    • Line overvoltage (OV) shutdown extends line surge limit
    • Line feed-forward with maximum duty cycle (DCMAX) reduction rejects line ripple and limits DCMAX at high line
    • Frequency jittering reduces EMI and EMI filtering costs
    • Regulates to zero load without dummy loading
    • 132 kHz frequency reduces transformer/power supply size
    • Half frequency option in Y/R/F packages for video applications
    • Hysteretic thermal shutdown for automatic fault recovery
    • Large thermal hysteresis prevents PC board overheating
  • EcoSmart – Energy Efficient
    • Extremely low consumption in remote off mode (80 mW at 110 VAC, 160 mW at 230 VAC)
    • Frequency lowered with load for high standby efficiency
    • Allows shutdown/wake-up via LAN/input port


Specification:-

Part Number 230 VAC ± 15% 85-265 VAC
Adapter1 Open Frame2 Adapter1 Open Frame2
TOP245YN 40W 85W 26W 60W
DRAIN Voltage -0.3 to 700 V
DRAIN Peak Current 2.88A
CONTROL Voltage 0.3 to 9 V
CONTROL Current 100 mA
Storage Temperature -65 to 150 °C
Operating Junction Temperature( -40 to 150 °C
Lead Temperature 260 °C



Related Document:-

TOP245YN IC Data Sheet


Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 171.1 (Inclusive of all Taxes)
