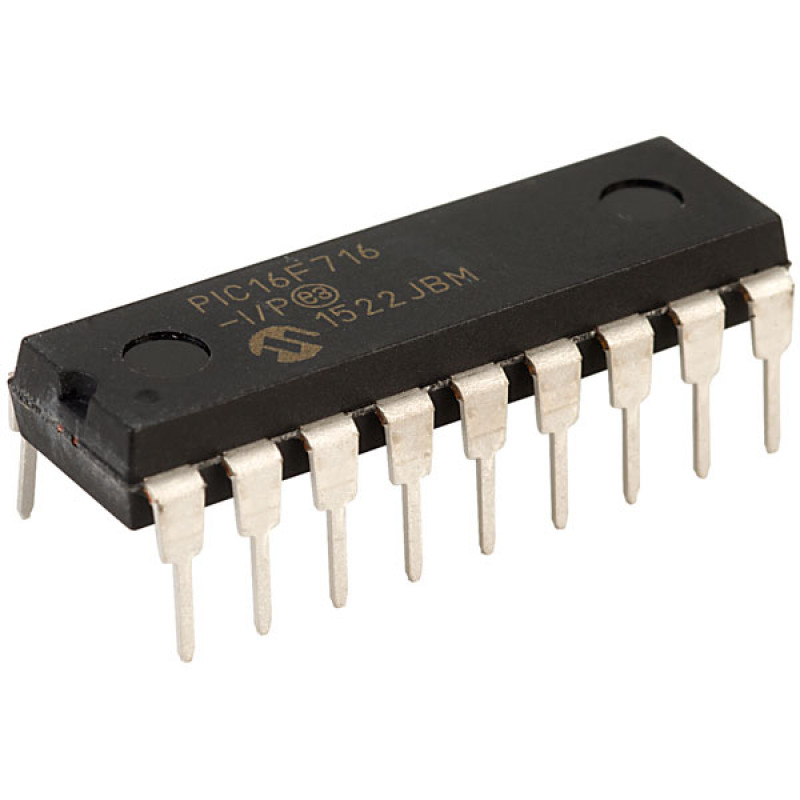

• PIC16F716 Microcontroller

The PIC16F690 is a 8-bit Flash-based Microcontroller with A/D Controller and Enhanced Capture/Compare PWM . The following are the features:-

• Timer0: 8-bit timer/counter with 8-bit prescaler

• Timer1: 16-bit timer/counter with prescaler can be incremented during Sleep via external crystal/clock

• Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler

• Enhanced Capture, Compare, PWM module:

   - Capture is 16-bit, max. resolution is 12.5 ns

   - Compare is 16-bit, max. resolution is 200 ns

   - PWM maximum resolution is 10-bit

   - Enhanced PWM:

        - Single, Half-Bridge and Full-Bridge modes

        - Digitally programmable dead-band delay

        - Auto-shutdown/restart

• 8-bit multi-channel Analog-to-Digital Converter

• 13 I/O pins with individual direction control

• Programmable weak pull-ups on PORTB

Specification:-

Parameter Value
Program Memory Type Flash
Program Memory Size (KB) 3.5
CPU Speed (MIPS/DMIPS) 5
SRAM (B) 128
Temperature Range (°C) -40 to 125
Operating Voltage Range (V) 2 to 5.5
Pin Count 18
Timers 2 x 8-bit, 1 x 16-bit
ADC Input 12 ch, 10-bit
Capture/Compare/PWM Peripherals 1 ECCP


Related Document:-

 PIC16F716 IC Data Sheet

Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

PIC16F716 Microcontroller

  • Product Code: EC-2155
  • Availability: 9
  • Rs.88.00
  • (Excluding 18% GST)
