Features of 10A10 Rectifier Diode:-
- High Surge Current Capability
- Low leakage
- Low forward voltage drop
- High current capability
- Low lost
- Maximum Recurrent Peak Reverse Voltage VRRM 1000V
- Maximum RMS Voltage VRMS 700V
- Maximum DC Blocking Voltage VDC 1000V
- Operating and Storage Temperature Range Tj, TSTG -55 to +150 °C
Mechanical Features of 10A10 Rectifier Diode:-
- Case: Molded plastic black body
- Epoxy: Device has UL flammability classification 94V-O
- Lead: MIL-STD-202E method 208C guaranteed
- Mounting position: Any
- Weight: 2.08 gram
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
* Product Images are shown for illustrative purposes only and may differ from actual product.

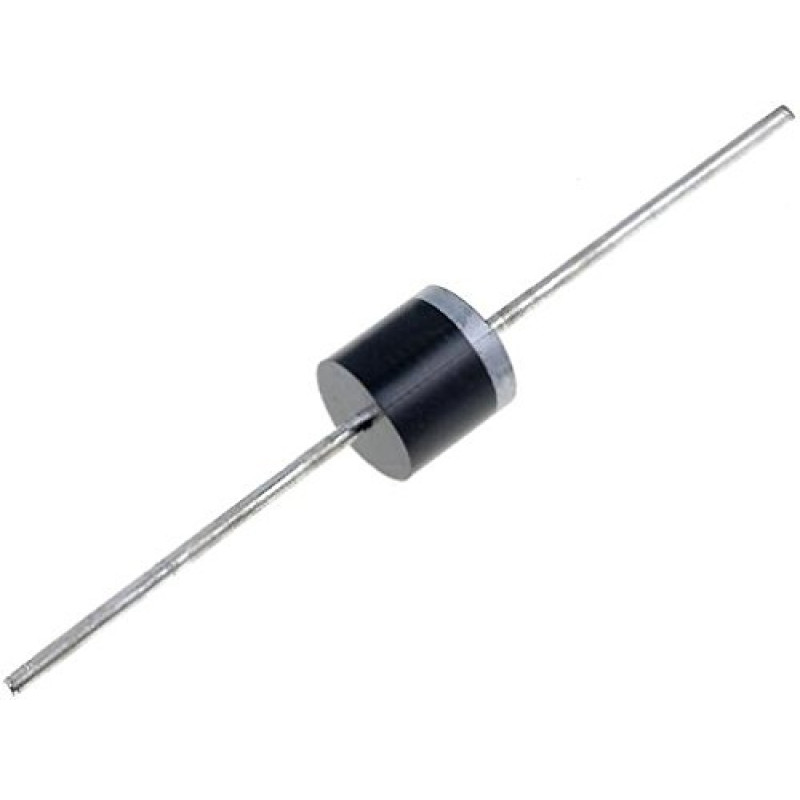

10A10 10A 1000V Silicon Rectifier Diode
- Product Code: EC-2972
- Availability: 5480
-
Rs.9.44
