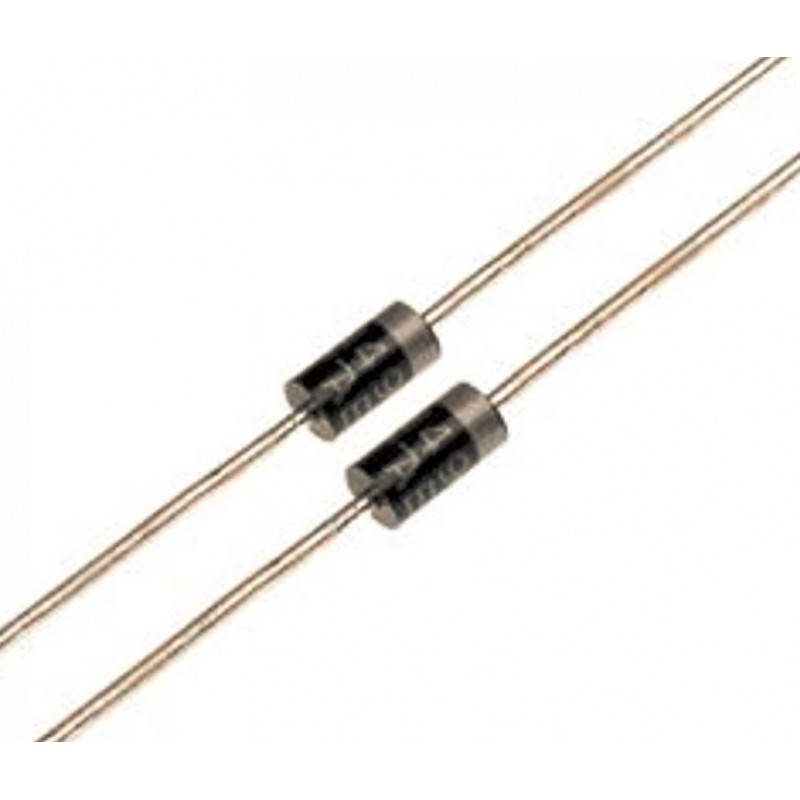

  • 1N4937 600V 1A Fast Recovery Diode - 2 pieces pack

The IN4937 Axial-lead, Fast Recovery Rectifiers are designed for special applications such as dc power supplies, inverters, converters, ultrasonic systems, choppers, low RF interference and free wheeling diodes. A complete line of fast recovery rectifiers having typical recovery time of 150 nanoseconds providing high efficiency at frequencies to 250 kHz.

Features:-

Low forward voltage drop.

High surge current capability.

High reliability.

High current capability

Fast switching for high efficiency

Low forward voltage drop

Low leakage current

High forward surge capability

Solder dip 275 °C max. 10 s, per JESD 22-B106

Shipped in Plastic Bags; 1,000 per Bag

Available Tape and Reeled; 5,000 per Reel, by Adding a “RL” Suffix to the Part Number

These are Pb−Free Device

Mechanical Characteristics:-

• Case: Epoxy, Molded

• Weight: 0.4 Gram (Approximately)

• Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable

• Lead Temperature for Soldering Purposes: 260°C Max. for 10 Seconds

• Polarity: Cathode Indicated by Polarity Band

Specification:-

Symbol Parameter Value Units
VRRM Peak Repetitive Reverse Voltage 600 V
VRWM Working Peak Reverse Voltage 600 V
VR DC Blocking Voltage 600 V
VR(RMS) RMS Reverse Voltage 420 V
VRSM Non−Repetitive Peak Reverse Voltage 650 V
IO Average Rectified Output Current 1 A
IFSM Non-Repetitive Peak Forward Surge Current 30 A
TJ Operating Junction Temperature Range − 65 to +150 °C
 Tstg Storage Temperature Range − 65 to +150 °C


Related Document:-

 IN4937 Diode Data Sheet

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 15.93 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

1N4937 600V 1A Fast Recovery Diode - 2 pieces pack

  • Product Code: EC-0609
  • Availability: 9515
  • Rs.8.50
  • (Excluding 18% GST)
