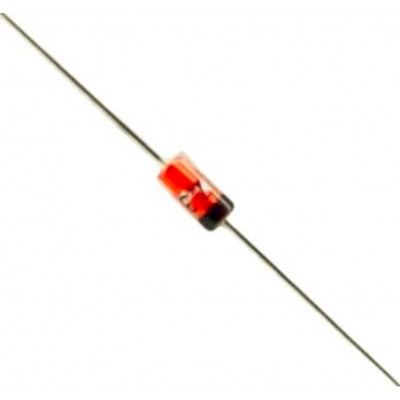

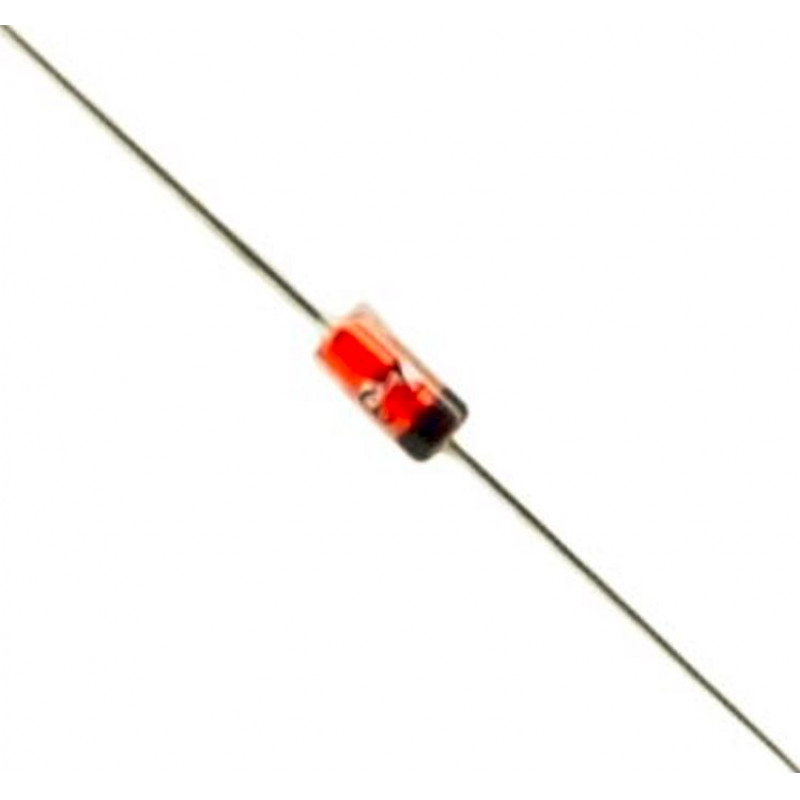

• 1N60 Germanium Diode

The 1N60 Germanium Diode is a point contact diode employing N-from Germanium and gives an efficient and excellent linearity when used in TV image detection, FM detection, radio, AM detection, etc.


Metal silicon junction, majority carrier conduction

High current capability, Low forward voltage drop

Extremely low reverse current lR

Ultra speed switching characteristics

Small temperature coefficient of forward characteristics

Satisfactory Wave detection efficiency

For use in RECORDER, TV, RADIO, TELEPHONE as detectors, super high speed switching circuits, small current rectifier

Germanium Glass Diode

RoHS Compliance

Mechanical Characteristics:-

• Case: DO-7, molded glass

• Weight:0.2 gram

• Terminals: Plated axial lead, solderable per MIL-STD-202E, Method 208

• Polarity: Color band denotes cathode end


Symbol Parameter Value Units
VRRM Peak Repetitive Reverse Voltage 40 V
VRM Peak Reverse Voltage 45 V
VR DC Blocking Voltage 20 V
IO Average Rectified Output Current 50 A
IFSM Non-Repetitive Peak Forward Surge Current 150 mA
TJ Operating Junction Temperature Range − 65 to +125 °C
 Tstg Storage Temperature Range − 65 to +125 °C

Related Document:-

 IN60 Diode Data Sheet
