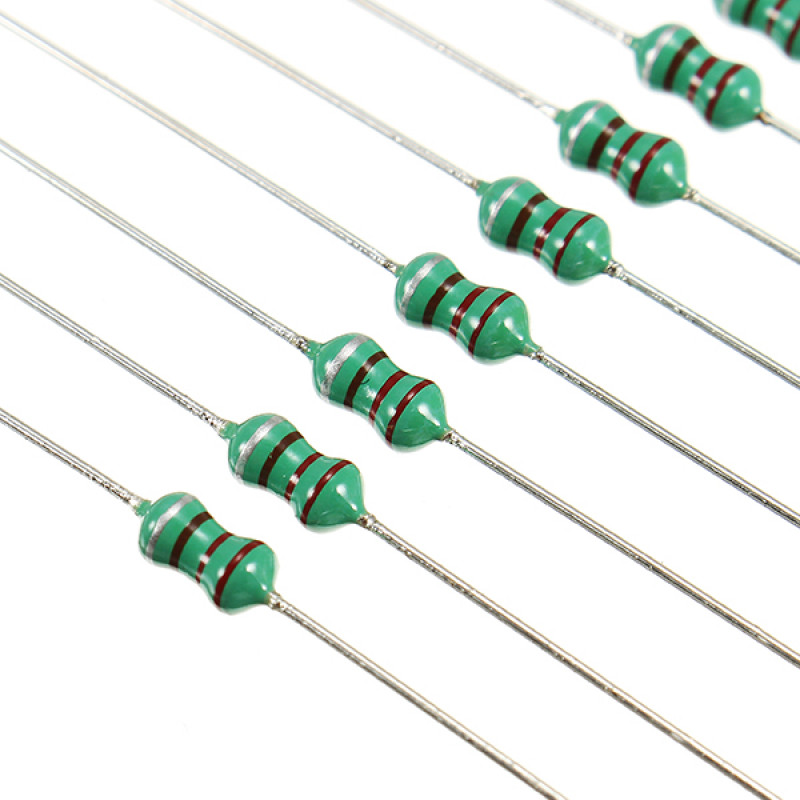

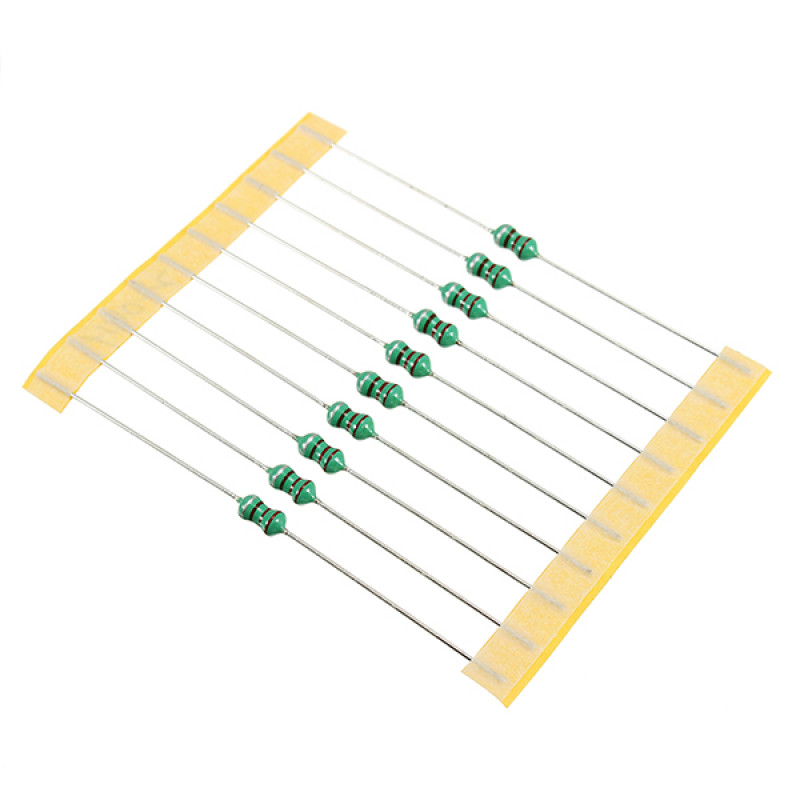

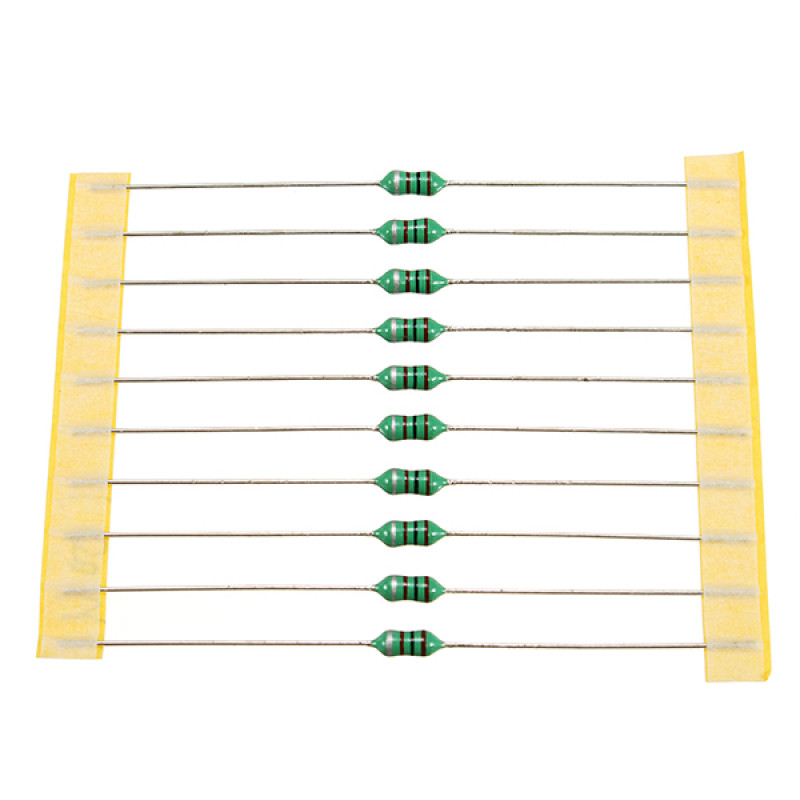

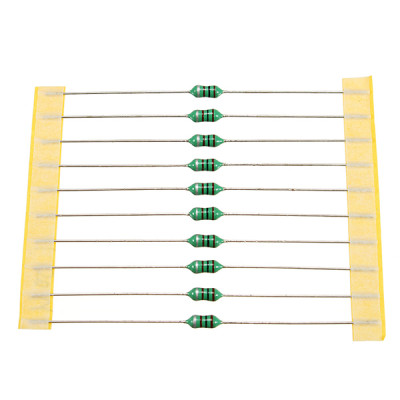

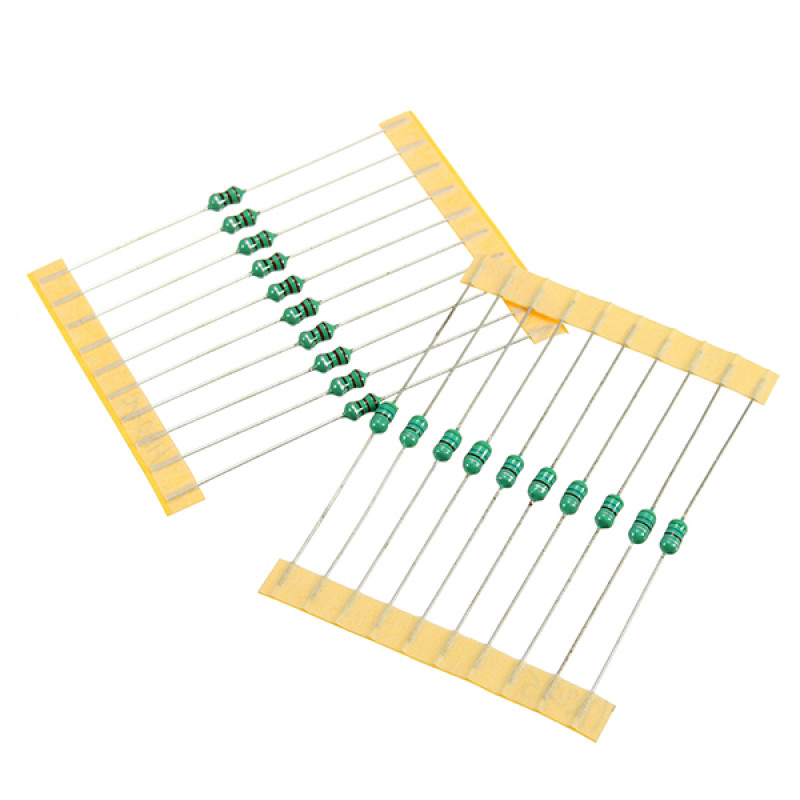

10uH 1/2W 0410 Color Ring Axial Lead Type Inductor is a small lightweight inductor. Its compact design is ideal to use in electronic devices. The inductor has a coating of epoxy resin which is resistant to humidity and thus improves the life of the same.

Additionally, this inductor has relatively long leads which provide the ability to bend to be automatically inserted into the PCB. This inductor can provide a high resonant frequency along with a high Q factor. It is also RoHS compliant.

Applications:
  1. Electronics Products
  2. Communication Equipment
  3. Computer Devices
  4. TV, VCR, Radios and so on.
Note:

Images for reference only. The actual product is as per product title.


Specifications:

  1. Design to be compact, small and light-weight
  2. Contribute to be high Q and self-resonant frequency
  3. Coating epoxy resin for long-life humidity resistance
  4. RoHS Compliant



Additional information

Inductance

10H

Tolerance(%)

10

Mounting Type

Through Hole

DC Resistance (DCR)(m) at 20C

560

Current Rating (A)

0.37

Frequency(Hz)

7.96M

Operating Temperature Range (C)

-40 to 85

Length (mm)

7

Width (mm)

3 (Body Diameter)

Weight (gm)

3



Package Includes:

10 x 10uH 1/2W 0410 Color Ring Axial Lead Type Inductor


Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 56.64 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

10uH 1/2W 0410 Color Ring Axial Lead Type Inductor - (10 Pieces Pack)

  • Product Code: EC-4871
  • Availability: 8279
  • Rs.34.00
  • (Excluding 18% GST)
