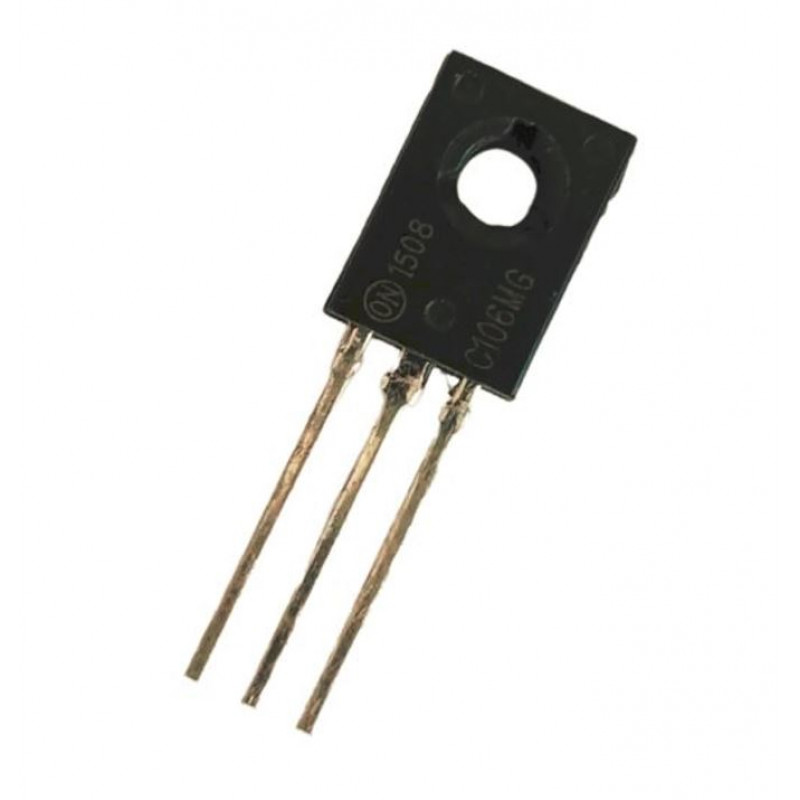

• C106MG - 600V - 4A SCR - Thyristor

 The C106MG is a Glassivated PNPN devices designed for high volume consumer applications such as temperature, light, and speed control; process and remote control, and warning systems where reliability Of operation;e important.

Features:-

 Power Rated at Economical Prices

• Practical Level Triggering and Holding Characteristics

• Flat, Rugged, Thermo pad Construction High Heat Dissipation and Sensitive Gate Triggering

• These are Pb—Free Device'

 Glassivated Surface for Reliability and Uniformity

 Specification:-

Symbol Parameter Ratings Units
VRRM Repetitive Peak Reverse Voltage 600 V
VDRM Repetitive Peak Off-state Voltage 600 V
IT(AV) Average on-state current 2.25 A
IT(RMS) Effective on-state current 4 A
ITSM Non-Repetitive Peak On-state Current 20 A
PGM Peak Gate Power Dissipation 0.5 W
Tj Junction Temperature -40 to 110  °C
Tstg Storage Temperature -40 to 150  °C


Related Document:-

 C106MG SCR Data Sheet
