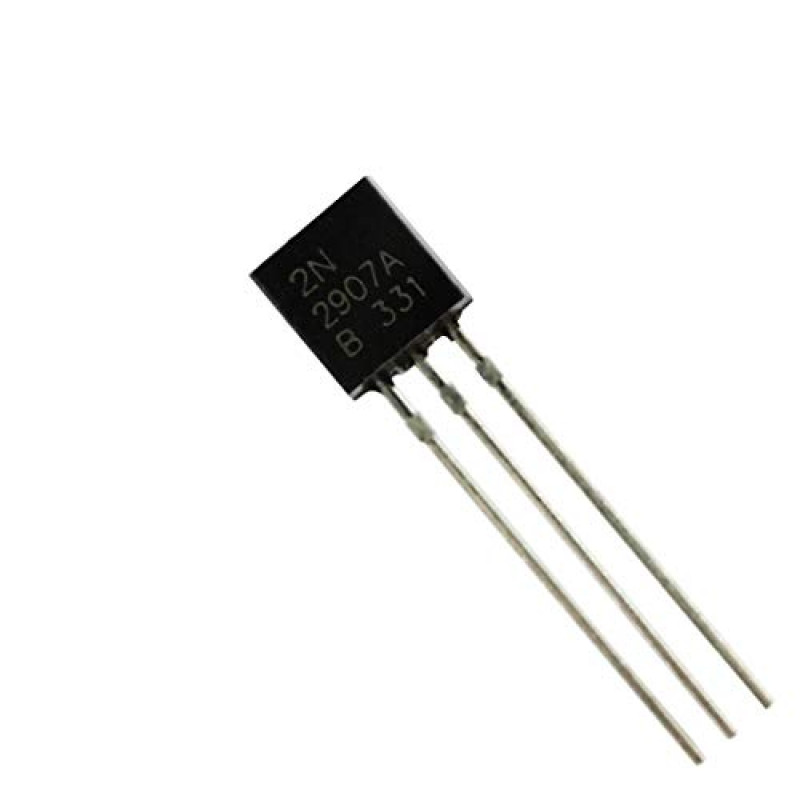

• 2N2907A PNP Switching Transistor TO-92 Plastic Package

2N2907A is a semiconductor device used to amplify or switch electronic signals and electrical power. It is composed of semiconductor material usually with at least three terminals for connection to an external circuit. A voltage or current applied to one pair of the transistor's terminals controls the current through another pair of terminals. Because the controlled (output) power can be higher than the controlling (input) power, a transistor can amplify a signal. Today, some transistors are packaged individually, but many more are found embedded in integrated circuits.


• Plastic TO-92 package

• Advanced process technology

• Low error voltage

• Fast switching speed

• Full-voltage operation

• High power and current handling capability

Detailed Specifications:-

Transistor Polarity PNP
Collector-Base Voltage (VCBO) 60V
Collector-Emitter Voltage (VCEO) 60V
Emitter-Base Voltage (VEBO) 5V
Continuous Collector Current (IC) 600mA
Input Capacitance (Cib) 30pF
Output Capacitance (Cob) 8pF
DC Current Gain (hFE) 100-300
Operating Temperature Range -55 - 200°C
Power Dissipation (PD) 625mW

Related Documents:-

 2N2907A Transistor Plastic Datasheet

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 11.21 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

2N2907A PNP Switching Transistor TO-92 Plastic Package

  • Product Code: EC-1607
  • Availability: 6766
  • Rs.9.50
  • (Excluding 18% GST)
