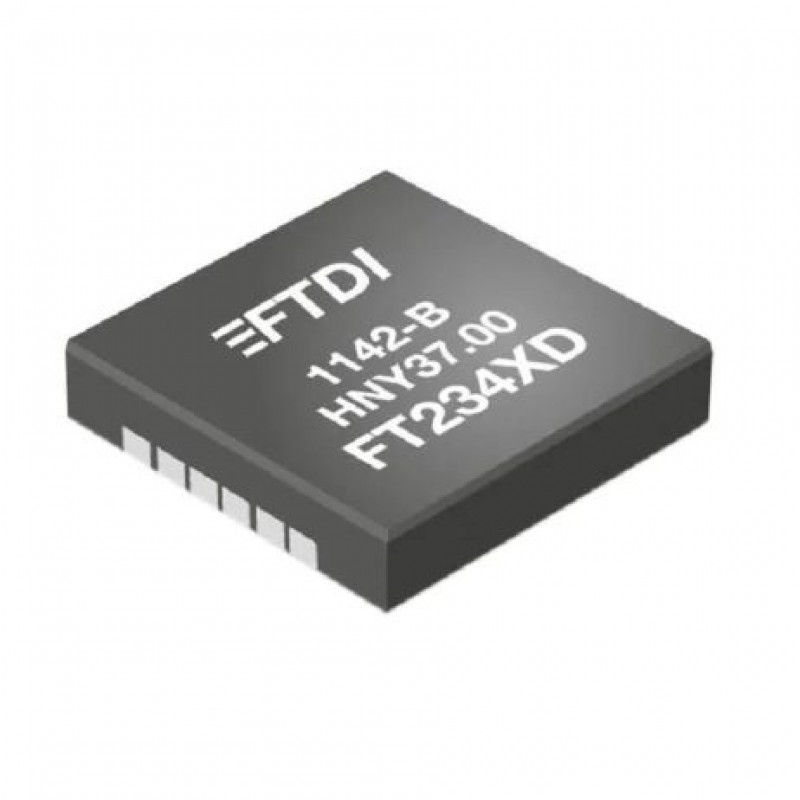

This is FT234XD-USB to basic UART-IC. This USB2.0 Full Speed IC offers a basic UART to USB bridge in a compact IC package; 3x3mm footprint in a 12 pin, DFN package. The device is a UART, capable of operating up to 3MBaud, with low power consumption (8mA). The FT234XD includes the complete FT-X series feature set, including battery charging detection and enables USB to be added into a system design quickly and easily over a UART interface.

Note:

1. The product may vary in shape, color, and markings as compared to the image shown depending upon availability.
2. Refer to datasheet in the ATTACHMENTS section for more info. regd. the product.

Features:

1. Single chip USB to asynchronous serial data transfer interface.
2. Entire USB protocol handled on the chip. No USB specific firmware programming required.
3. Fully integrated 2048 byte multi-time
4. programmable (MTP) memory, storing device descriptors and CBUS I/O configuration.
5. Fully integrated clock generation with no external crystal required plus optional clock output selection enabling a glue-less interface to external MCU or FPGA.
6. Data transfer rates from 300 baud to 3 Mbaud (RS422, RS485, and RS232) at TTL levels.
7. 512 byte receive buffer and 512 byte transmit buffer utilising buffer smoothing technology to
   allow for high data throughput.
8. FTDIs royalty-free Virtual Com Port (VCP) and Direct (D2XX) drivers eliminate the requirement
   for USB driver development in most cases.
9. Configurable CBUS I/O pin.
10. Transmit and receive LED drive signals.
11. UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity
12. Synchronous and asynchronous bit bang interface options with RD# and WR# strobes.
13. USB Battery Charging Detection. Allows for USB peripheral devices to detect the presence of a
    higher power source to enable improved charging.
14. Device supplied pre-programmed with unique USB serial number.
15. USB Power Configurations; supports bus- powered, self-powered and bus-powered with power switching
16. Integrated +3.3V level converter for USB I/O.
17. True 3.3V CMOS drive output and TTL input; Operates down to 1V8 with external pull ups.
    Tolerant of 5V input.
18. Configurable I/O pin output drive strength; 4 mA (min) and 16 mA (max).
19. Integrated power-on-reset circuit.
20. Fully integrated AVCC supply filtering no external filtering required.
21. UART signal inversion option.
22. + 5V Single Supply Operation.
23. Internal 3.3V/1.8V LDO regulators
24. Low operating and USB suspend current; 8mA (active-typ) and 70uA (suspend-typ).
25. UHCI/OHCI/EHCI host controller compatible.
26. USB 2.0 Full Speed compatible.
27. Extended operating temperature range; -40 to 85C.
28. Available in compact Pb-free 12 pin DFN package (3mm x 3mm) RoHS compliant.

Package Includes:

1 x FT234XD-USB to basic UART-IC
