The 103SR13A-1 is an unipolar hall-effect digital Position Sensor with 15/32-32 UNS-2A cylindrical aluminium threaded housing and 152mm (6-inch) 24-gauge stranded lead wires, irradiated polyethylene insulated termination. Meet NEMA 3, 3R, 3S, 4, 4X (stainless-steel housing), 12 and 13 requirements. They respond to the magnetic field from permanent magnets or electromagnets. This rugged non-contact sensing product use versatile, reliable Hall-effect sensor ICs that are operated by a magnetic field and are designed to respond to alternating North and South Poles or to South Pole only. The hall-effect position sensor includes latching and linear magnetic types. The standard open-collector sinking output (digital devices) or push-pull output (linear device) of the hall-effect position sensor can be easily interfaced with common electronic circuitry such as microprocessors, integrated logic, discrete transistors, and SCRs with compatible voltage specifications.
Note: for more technical details go through Datasheet in the attachment section
Features:
- Solid state reliability
- Adjustable mounting
- -40 to 100C operating temperature
- 0.4VDC maximum (operated) output voltage
- 10mA (maximum at 25C) supply current
- 20mA maximum output current
- 20A leakage current
Package Includes:
1 x HONEYWELL Hall Effect Sensor, Position, 103SR Series, Sink Output, 400 mV out, Cylindrical, 4.5 to 24 Vdc
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

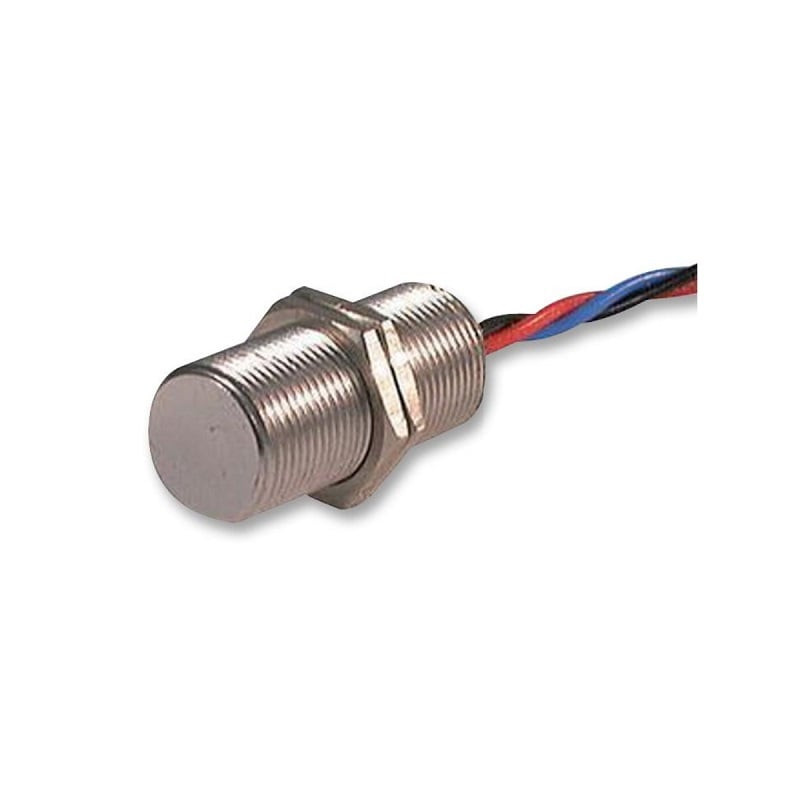

HONEYWELL Hall Effect Sensor, Position, 103SR Series, Sink Output, 400 mV out, Cylindrical, 4.5 to 24 Vdc
- Product Code: EC-21875
- Availability: Out Of Stock
-
Rs.3791.00
- (Excluding 18% GST)
