How wonderful will it look when we light up numerous colorful LEDs together? Of course, Fantastic! Who doesnt like colorful lights? However, it is not easy to connect all the LEDs altogether if you want to build colorful LED projects. But, we have a solution for you and it is, Grove Chainable RGB LED v2.0. The keyword of this product is Chainable i.e. how many LEDs can be chained? So, now you can chain 1024 RGB LEDs at most by connecting the output grove connector of one LED to the input grove connector of another one. Isnt it amazing?

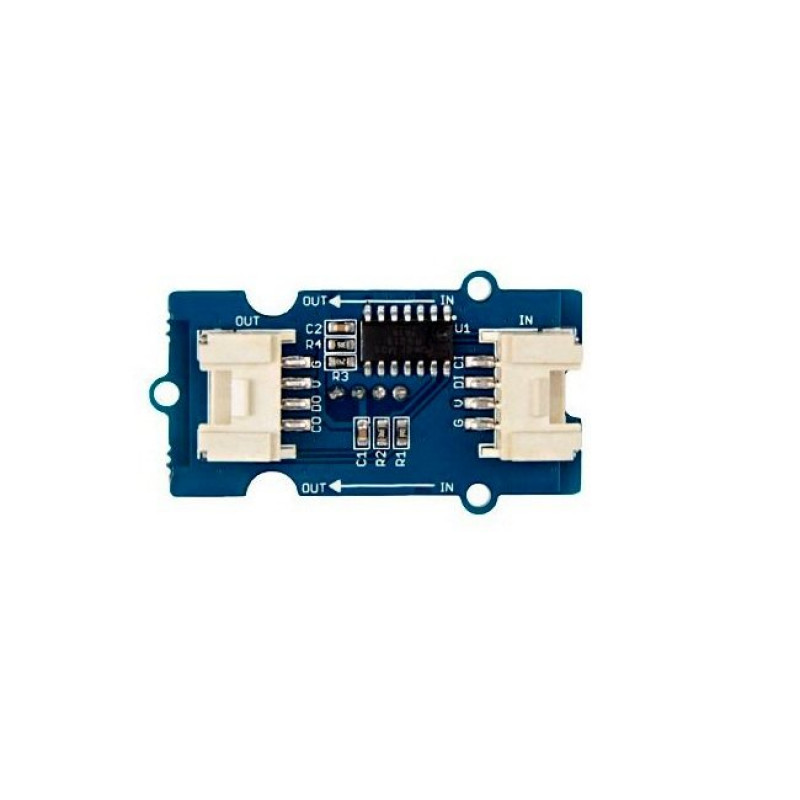

Grove Chainable RGB LED V2.0 is based on the P9813S14 chip. This chip is a full-color light source driver that can provide three constant-current drivers as well as 256 grayscale modulation output. It communicates with an MCU using 2-wire transmission (Data and clock). This 2-wire transmission can be used to cascade additional Grove Chainable RGB LED modules. The built-in clock regeneration enhances the transmission distance. This RGB LED is compatible with Arduino, Raspberry Pi, BeagleBone, Wio, and LinkIt platform.In this version v2.0, the grove connectors are adjusted to be parallel with the board instead of vertical, so that the cable doesnt need to be crooked. This Grove module is suitable for any colorful LED-based projects. Use it and add a magical light effect to your projects!

For all Grove users (especially beginners), Seeed Studio provides guidance PDF documents. Please download and read through Preface Getting Started and Introduction to Grove before using the product. This is a suitable product for not only Grove users but also all electronic enthusiasts. So, why wait? Buy now!

Features:

  1. 3 constant current drivers
  2. Max. chained LED quantity: 1024
  3. 256 grayscale modulation output

Useful links:

Tutorial


Project Links:
  1. Security Access Using Seeeduino Lotus
  2. Color-Changing Cat
  3. DIY a Retro Wooden Lamp with BBG
  4. Horror doll

Package Includes:

1 x Grove Chainable RGB LED v2.0 Module


Specifications :-

Operating Voltage (VDC)

5

Operating Temperature Range (C)

-40 to 85

Maximum Operating Current (A)

0.6

Length (mm)

40

Width (mm)

20

Height (mm)

15

Mounting hole diameter (mm)

2

Weight (gm)

5

Shipment Weight

0.006 kg

Shipment Dimensions

9.8 6.8 1.5 cm

Brand/Manufacturer SeeedStudio
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 114.46 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

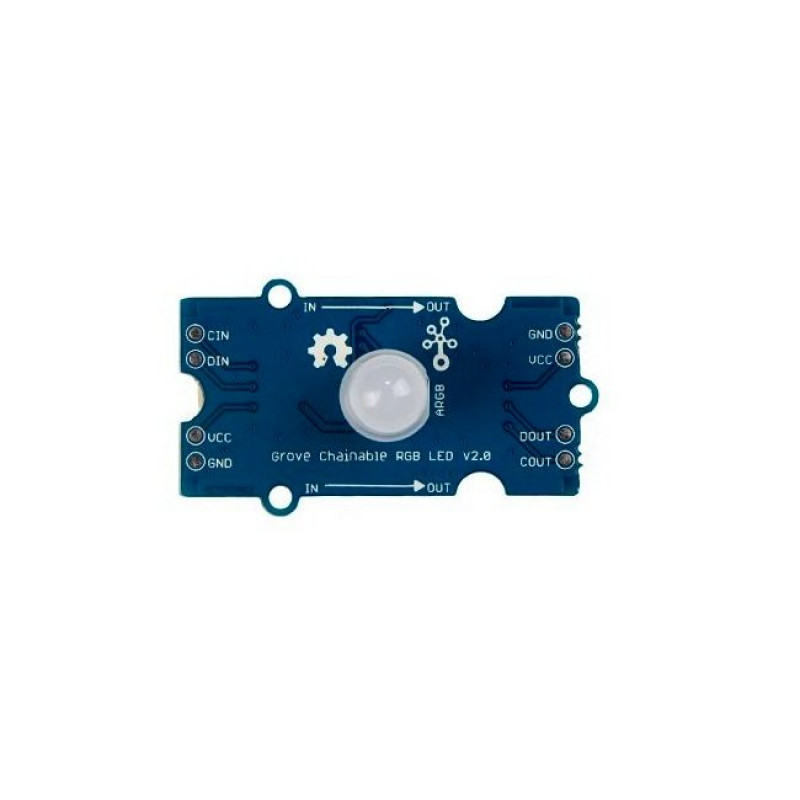

SeeedStudio Grove Chainable RGB LED v2.0 Module
