This NE555 Delay Monostable Switch Module item is a timer switch module, based on the NE555 chip, high-performance timing CPU design. The power indicator LED and switch trigger timing indication LEDs. Timing from microseconds to long hours. Applicable to vehicle equipment-delay to prevent car ignition, prevention of high sudden current to burn components and devices.

    This is a monostable generator based on the NE555 integrated circuit. It has an adjustable delay time from 0 to 10 seconds using the potentiometer or by changing the capacitance. It is also capable of controlling the device below 220V/10A.

    Specifications & Features of NE555 Delay Timer Switch Adjustable 0-10 Sec 12V Relay Module:-
    • Module based on the NE555 chip.
    • Input voltage: DC 12V
    • Adjustable time: 0-10 s
    • AC Control voltage: 250V/max. 10A
    • DC Control Voltage: 30V/max. 10A
    • Max. load: 2200W
    • Precision Pulse Generation / Timing.
    • Monostable Operation.
    • Standby no power consumption
    • Excellent temperature stability of 0.005%/°C

    Brand/Manufacturer Generic
    Country Of Origin China
    Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
    MRP Rs. 97.94 (Inclusive of all Taxes)
    Write a review
    Please login or register to review

    * Product Images are shown for illustrative purposes only and may differ from actual product.

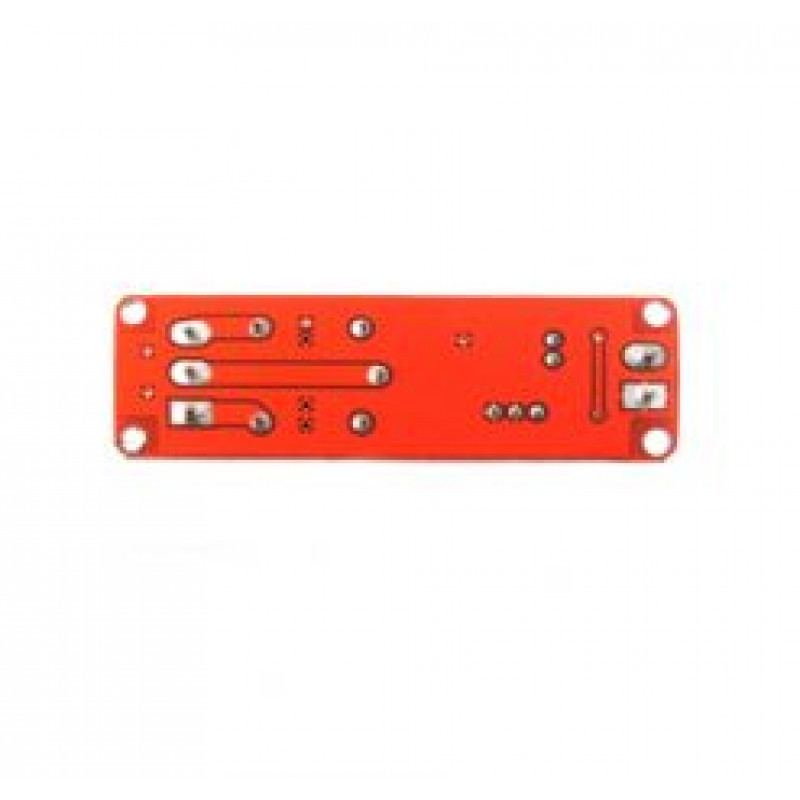

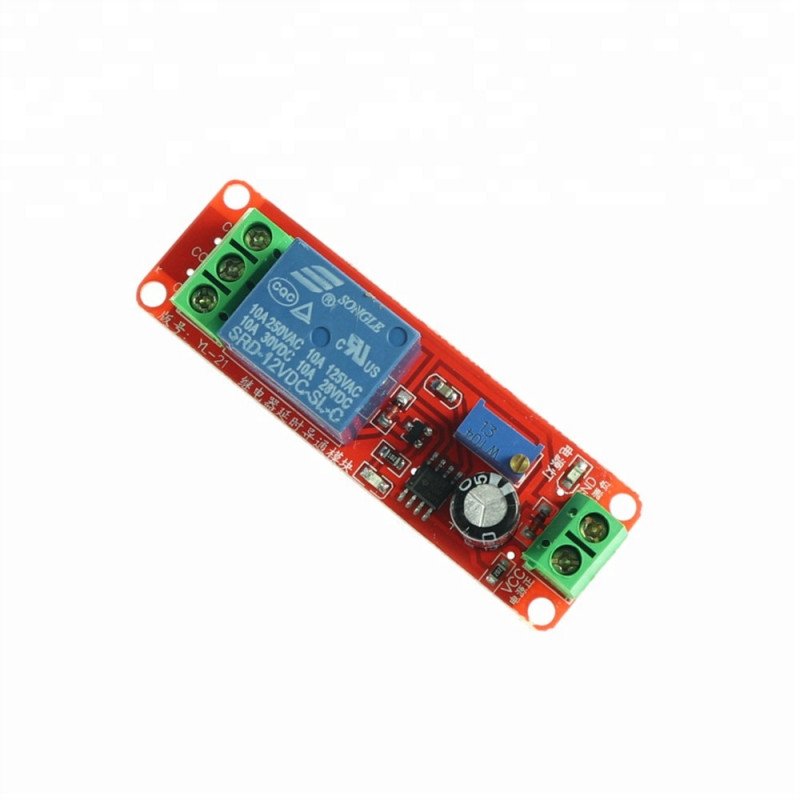

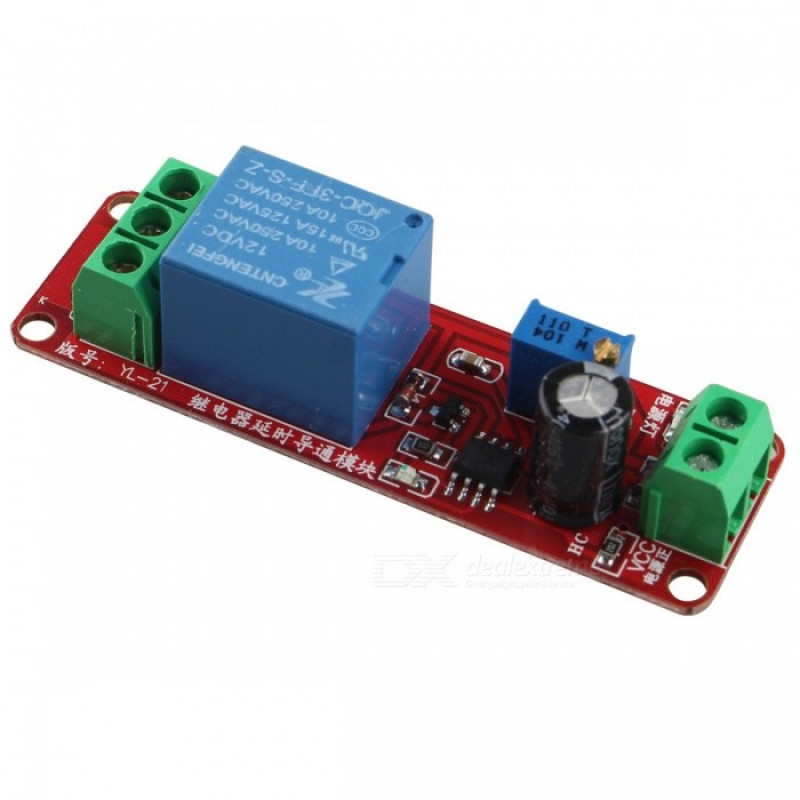

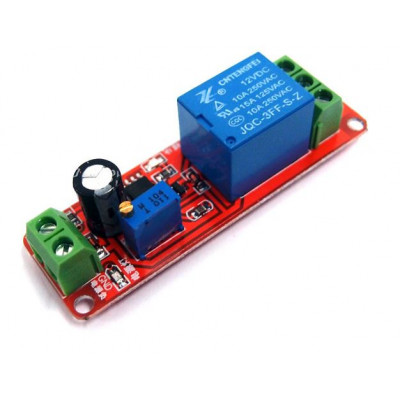

    NE555 Delay Timer Switch Adjustable 0-10 Sec 12V Relay Module

    • Product Code: EC-3208
    • Availability: 385
    • Rs.66.00
    • (Excluding 18% GST)

    • Wholesale Pricing
      Select Quantity Discount Price per piece
      1 - 9 0% 66.0000
      10 - 24 2% Rs.65.00
      25 - 49 5% Rs.63.00
      50 - 99 8% Rs.61.00
      100+ 11% Rs.59.00
