Thestepper motorsmove in precisely repeatable steps, hence they are the motors of choice for the machines requiring precise position control.

The motors position can be commanded to move or hold in one position with the help ofStepper Motor Drivers. The Stepper motor provides excellent response to starting, stopping, and reversing pulses from thestepper motor driver.

NEMA Stepper Motors are very useful in various applications, especially which demands low speed with high precision. Many machines such as3D Printers, CNC Router and Mills, Camera Platforms, XYZ Plotters, etc.

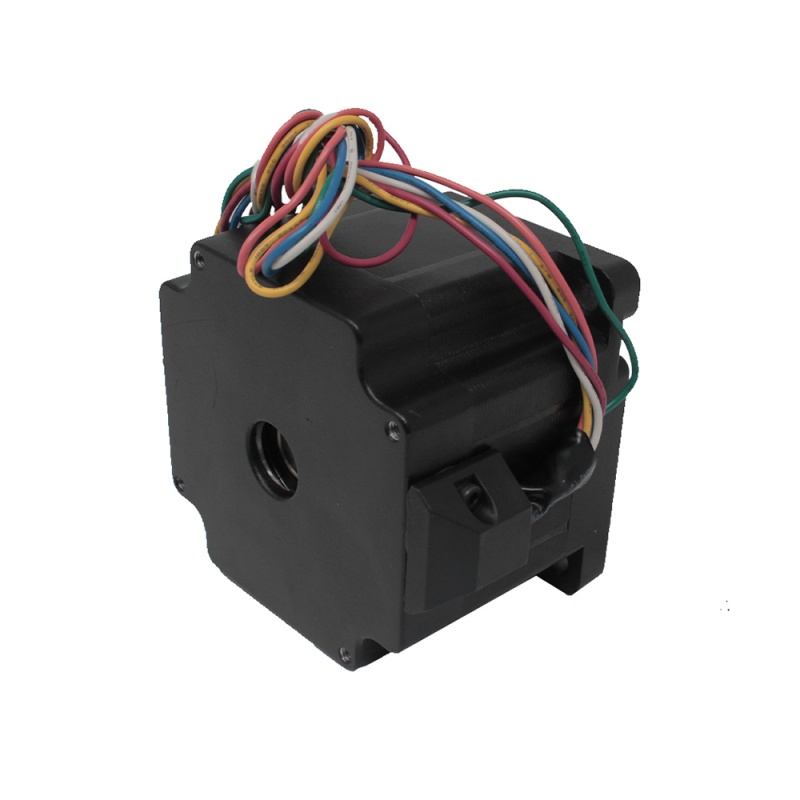

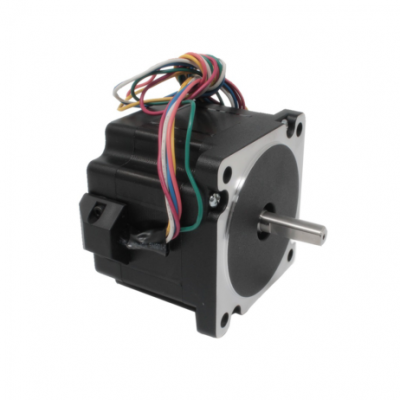

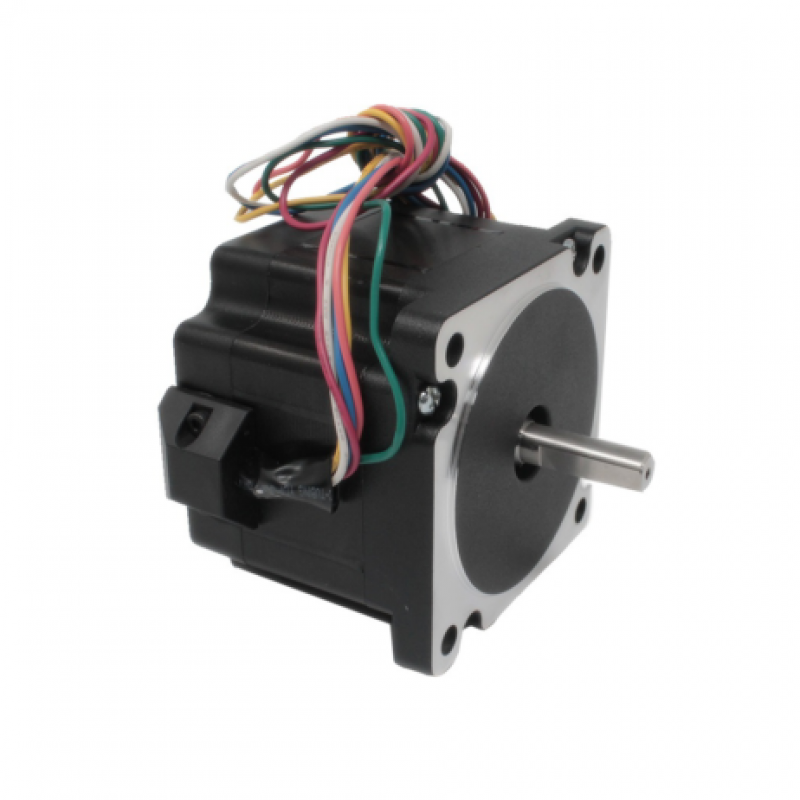

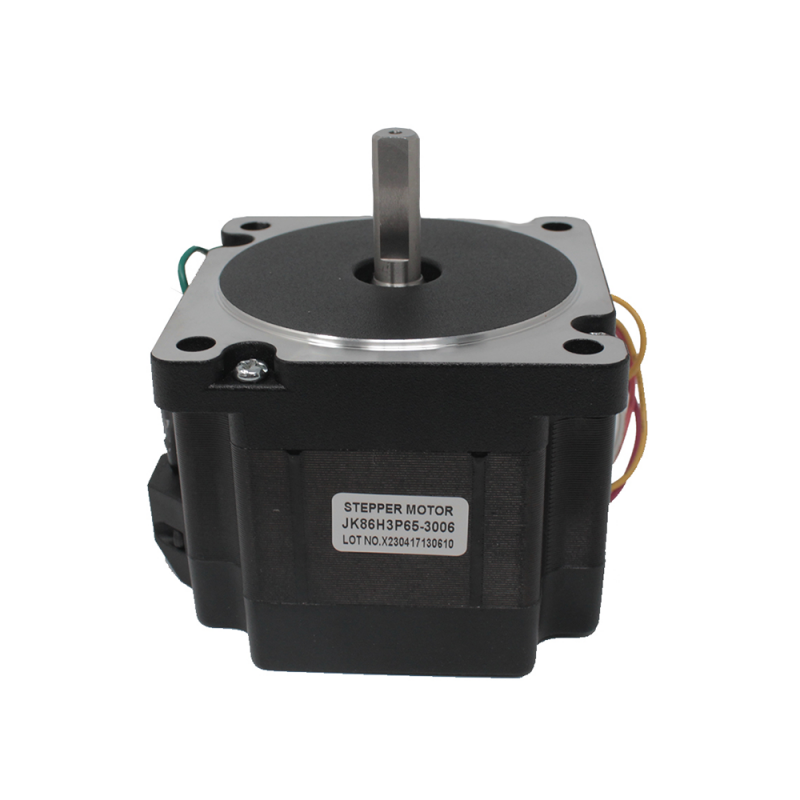

This is NEMA34 86H3P65-3006 20.39Kg-cm 1.2 Angle Stepper Motor D-Type. The 86H3P65-3006 is a powerful NEMA34 D-Type stepper motor with a holding torque of 20.39 Kg-cm and a 1.2 angle per step. It is designed for applications that demand robust and high-torque performance. With its durable build and efficient design, this motor provides precise and controlled motion, ensuring accurate positioning. Its compatibility with NEMA34 standards allows for easy integration into various automation and machinery systems. Whether its in industrial settings or large-scale robotics, this motor excels in delivering reliable and strong movement for critical tasks.

It is a brushlessDC motor, so the life of this motor is dependent upon the life of thebearings. The position control is achieved by a simple Open Loop control mechanism so it doesnt require complex electronic control circuitry.

The motors shaft has been machined for good grip with a pulley, drive gear, etc. and especially avoiding stall or slip.

We are engagedin supplying and wholesaling a quality approvedcollection ofStepper Motorswhich are highly acknowledged and accepted for long service life and high reliability. To explore more of them click below,

Stepper Motors

Note:

1. The motor dimensions and weight may have 2% error.
2. Resonances can occur because of improper mounting.
3. Not easy to operate at extremely high speeds.

Features:

1. NEMA34 D-Type stepper motor
2. Holding torque: 20.39 Kg-cm
3. Step angle: 1.2
4. Current/Phase: 3A
5. Resistance:/Phase: 0.5 ohm
6. Powerful and high-torque performance
7. Precise and controlled motion
8. Accurate positioning capabilities
9. Durable and efficient design
10. Compatible with NEMA34 standards
11. Suitable for industrial automation and robotics
12. Reliable and robust movement for critical tasks.

Package Includes:

1 x 86H3P65-3006 NEMA34 20.39Kg-cm 1.2 angle Stepper Motor D-Type
