Key Specifications:-

  • Output Voltage           36V
  • Type                         Enclosed Type
  • Approx. Wattage 349W
  • Features                 Standard
  • Series                 LRS(Reliable)
  • Mechanical Form Enclosed
  • Warranty                 3 Years Warranty
  • IP Level                 Non-Waterproof
  • Input Voltage         115V/230V by switch


Features:-

  • No load power consumption <0.5W for 150W;  <0.75W for 200W/350W
  • AC input selectable by switch
  • Withstand 300VAC surge input for 5 seconds
  • Ultra compact and 1U low profile
  • Withstand 5G vibration test
  • High operating temperature up to 70oC
  • Protections:  Short circuit / Overload / Over voltage / Over temp.
  • Cooling by free air convection (150W/200W);  forced air cooling by built-in DC fan (350W)
  • Compliance to IEC/EN60335-1(PD3) and  IEC/EN61558-1,-2-16 for household appliances (150W)
  • Operating altitude up to 5000 meters
  • LED indicator for power on
  • High efficiency, long life and high reliability
  • Low cost
  • 3 years warranty


Specifications:-

AC input voltage range115 / 230VAC by switch
AC inrush current (max.)Cold start, 60A at 230VAC
DC adjustment range±10% by potentiometer
Overload protection Range110%~140%
Overload protection TypeHiccup mode, auto-recovery
Over voltage protection Range115%~145% rated output voltage
Over voltage protection TypeShut down o/p voltage, re-power on to recover
Withstand voltageI/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature-25~+70°C (refer to output derating curve)
Safety standardsUL60950-1 approved
EMC standardsDesign refer to EN55022 class A
Connection9P/9.5mm pitch terminal block
Dimension (LxWxH)215x 115x 30



Related Documents:-

 LRS-350 Datasheet

 LRS-350-36 Test Report

 UL Certificate (LRS-350)

 CB Certificate (LRS-350)

 CE Certificate (LRS-350)

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 3184.82 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

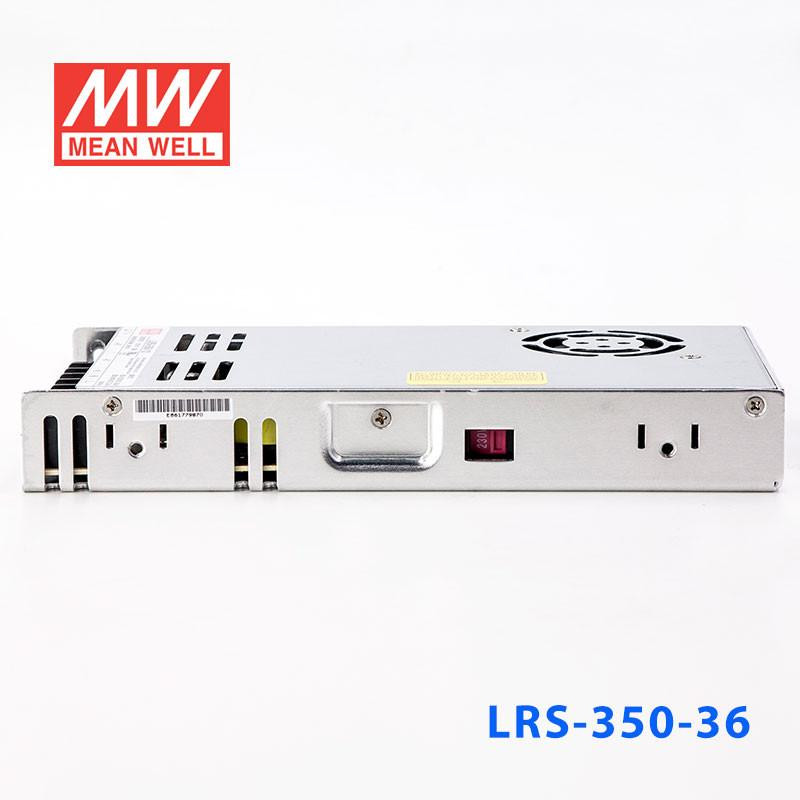

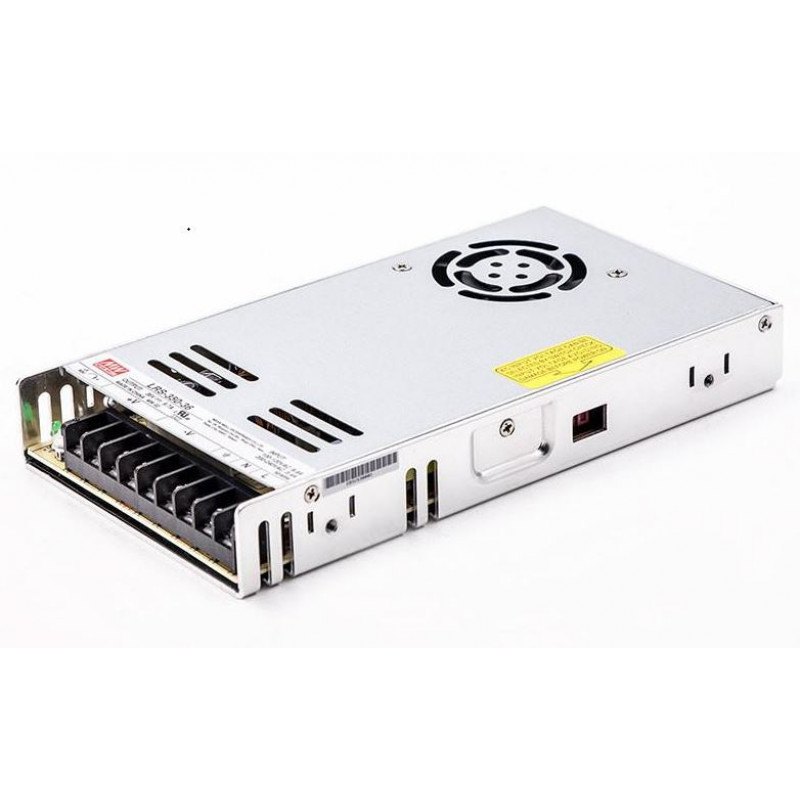

LRS-350-36 Mean Well SMPS - 36V 9.7A - 349.2W Metal Power Supply

  • Product Code: EC-2678
  • Availability: 59
  • Rs.2699.00
  • (Excluding 18% GST)
