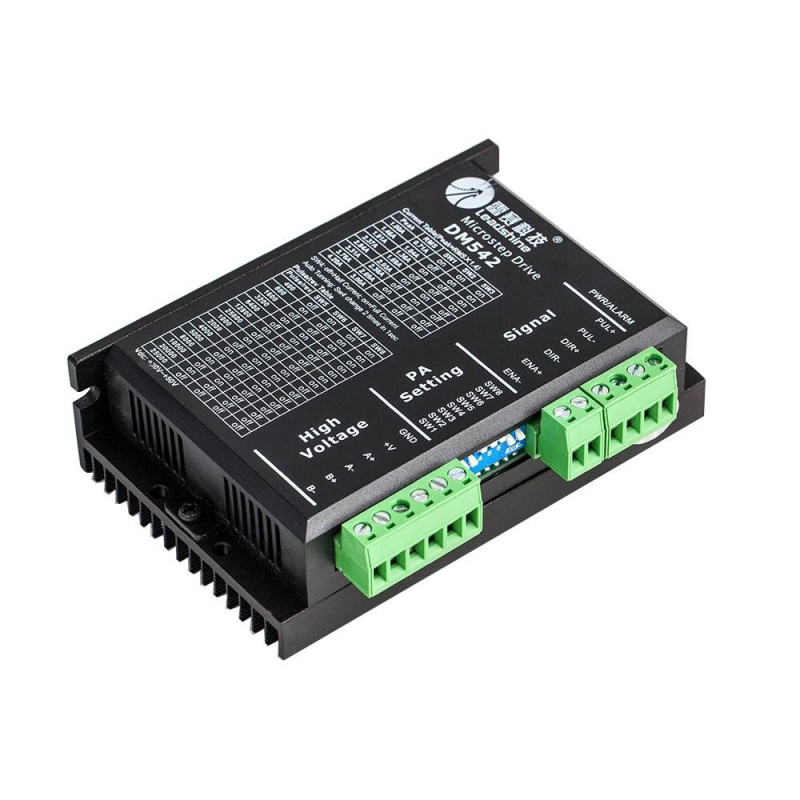

The DM542 Digital Stepper Motor Driver is an economical micro-stepping driver and suitable for driving 2-phase and 4-phase hybrid stepping motors.

By using the advanced bipolar constant-current chopping technique, it can output more speed and torque from the same motor, compared with traditional drivers, such as L/R drivers. Its 3-state current control technology allows coil currents to be well controlled and with relatively small current ripple, therefore less motor heating is achieved.

The DM542 is a fully digital stepper driver developed with advanced DSP control algorithm based on the latest motion control technology. It has achieved a unique level of system smoothness, providing optimal torque and nulls mid-range instability. Its motor auto-identification and parameter auto-configuration feature offer a quick setup to optimal modes with different motors.

Compared with traditional analog drives, DM542 can drive a stepper motor at the much lower noise, lower heating, and smoother movement. Its unique features make DM542T an ideal choice for high requirement applications. We highly recommend this to work as NEMA 17 driver and NEMA 23 driver.


Features:

  1. Extremely cost-effective
  2. Good high-speed performance
  3. Automatic idle-current reduction
  4. 3-state current control technology
  5. Self-adjustment technology
  6. Pure-sinusoidal current control technology
  7. TTL compatible and optically isolated input
  8. 15 selectable resolutions in decimal and binary, up to 25,600 steps/rev
  9. Suitable for 2-phase and 4-phase motors
  10. DIP switch current setting with 8 different values
  11. Support PUL/DIR and CW/CCW modes
  12. Short-voltage, over-voltage, over-current protection

Package Includes:

1 x DM542 Digital Stepper Motor Driver


Specifications :

Model

DM542

Input Supply Voltage (VDC)

50

Max. Output Current (Amp)

4.2

Pulse Frequency (KHz)

300

Operating Temperature (C)

-10 to 50

Length (mm)

118

Width (mm)

75

Height (mm)

33

Weight (gm)

255

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 3302.82 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

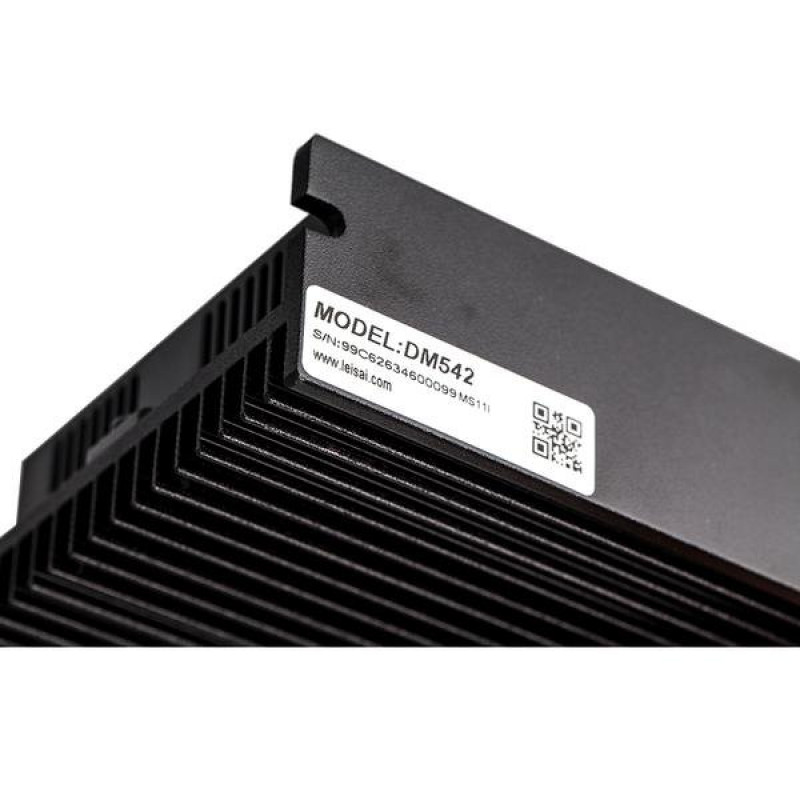

DM542 Digital Stepper Motor Driver
