If you are building a large CNC Mill, CNC Lathe or a CNC Router, etc. then you are at the right place. This Bipolar NEMA34 122 kg-cm Hybrid Stepper Motor is your perfect choice. So the most attractive thing about this monster NEMA stepper motor is 122 kg-cm torque they provide.
This Motor provides excellent response to starting, stopping and reversing pulses from the stepper motor driver. It will give you 122 kg-cm of torque at 6A of current per phase. You can use them where you need high torque at high speed.
Stepper motor divides a full rotation into a number of equal steps. Thus, the motors position can be commanded to move and hold at one of these steps, as long as the motor is carefully sized to the application with respect to torque and speed.
This NEMA 34 Stepper Motor is a powerhouse when it comes to larger machines that require high torques. These are specially designed to withstand high torque requirements of large CNC machines.
The NEMA34 122 kg-cm Hybrid Stepper Motor is a brushless dc motor that operates in Open Loop Control system. This type of shaft is useful in providing stability in high power operation.
Features:
- Supreme finish
- Smooth surface
- Long-lasting life
- Low cost for control achieved
- High torque at startup and low speeds
- Ruggedness
- Simplicity of construction
- Can operate in an open-loop control system
- Low maintenance
- Less likely to stall or slip
Package Includes:
1 x 6A 122 kg-cm NEMA 34 Stepper Motor
Specifications:
| Rated Voltage (V) | 4.08 |
| Current/ phase (A) | 6 |
| Holding Torque(kg-cm) | 122 |
| Step Angle | 1.8 degree |
| No. of Leads | 4 |
| Dielectric Strength | 820VAC for 1s 3mA |
| Inductance(mH) | 9 |
| Ambient Temperature | -20ºC~+50ºC |
| Temperature Rise | 80ºCmax |
| Shaft Radial Play | 0.02Max. (450g-load) |
| Shaft Axial Play | 0.08Max. (450g-load) |
| Max. radial force | 220N (20mm from the flange) |
| Max. axial force | 60N |
| Step Angle Accuracy | ±5% |
| Length (mm) | 155 |
| Weight(g) | 5076 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 7078.82 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

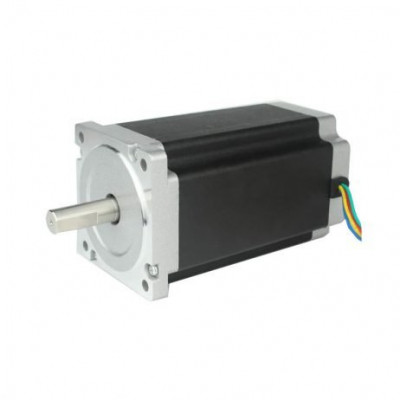

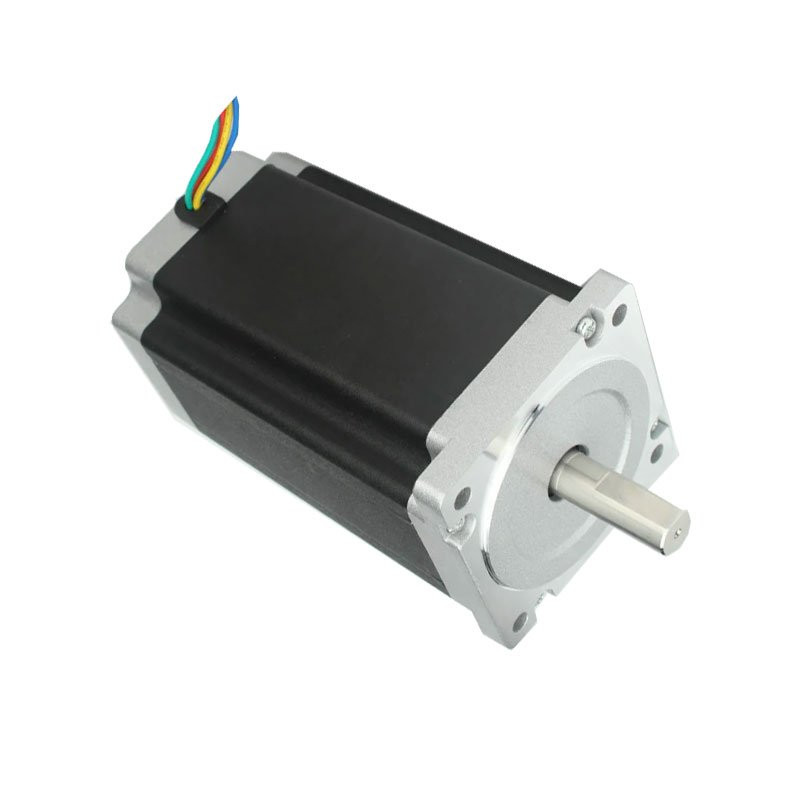

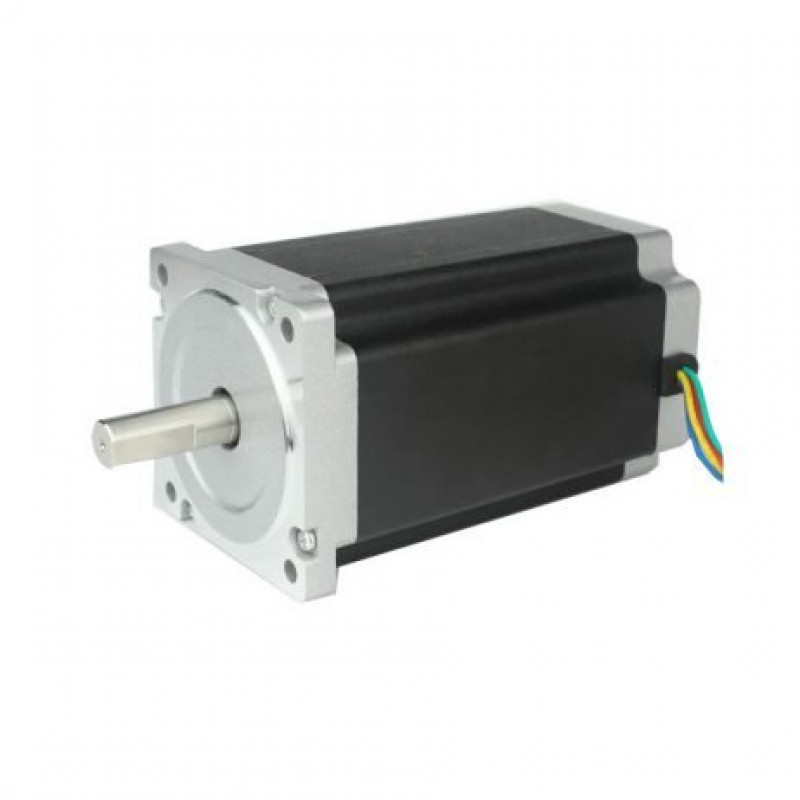

NEMA34 6A 122 kg-cm Single Shaft 1.8 Degree Stepper Motor
- Product Code: EC-5557
- Availability: 2
-
Rs.6369.00
- (Excluding 18% GST)
