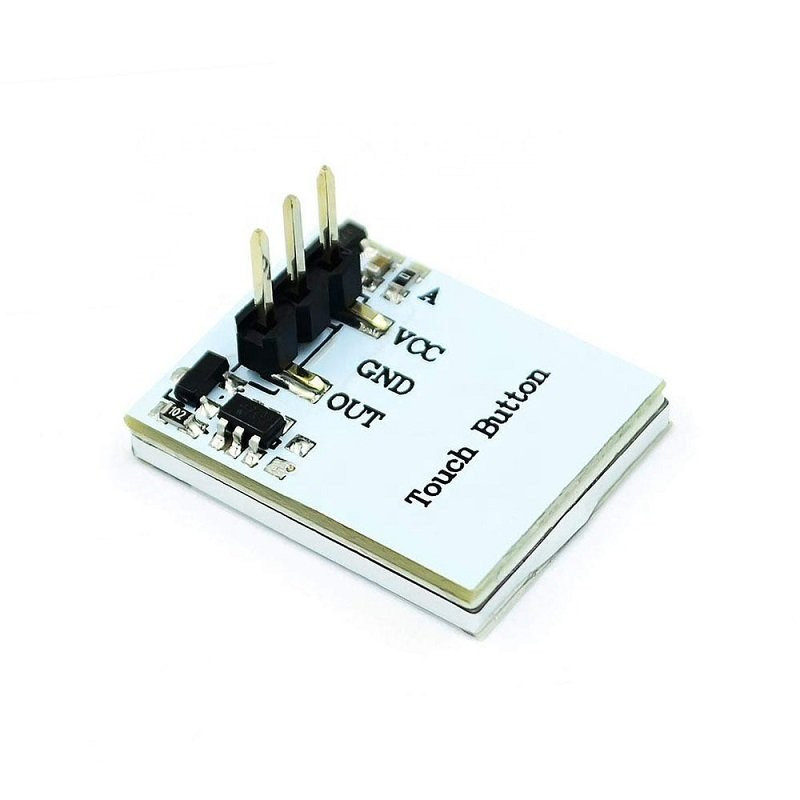

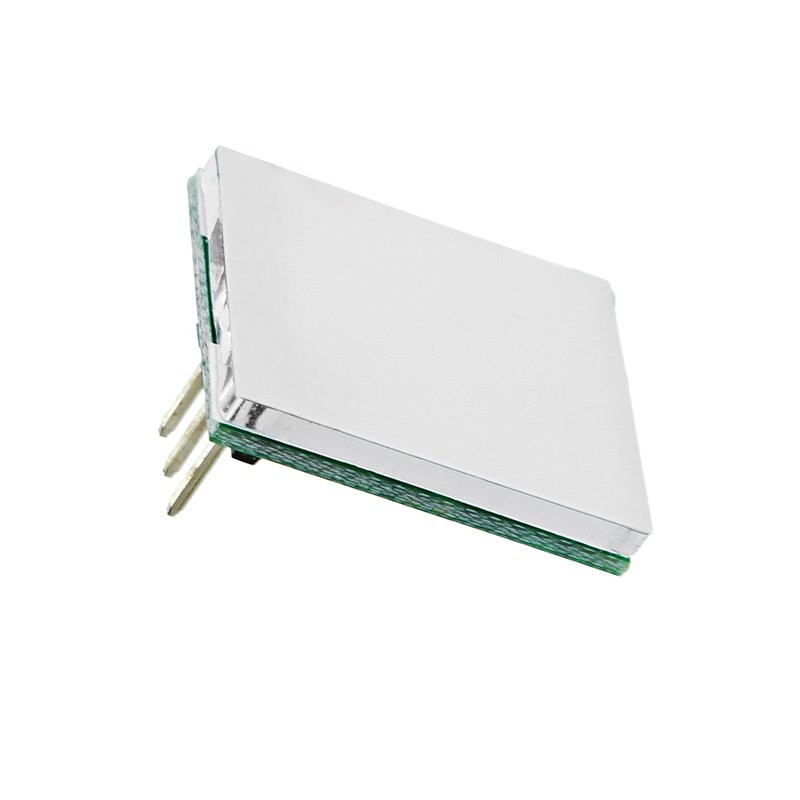

This is a Capacitive Touch Switch HTTM Touch Button Sensor Module for RGB Colorful Display Integrated Circuit.
Portable media players and mobile handhelds are bringing convenience to our lives. As a hub for human-computer interaction, the keys are a very important part, and the traditional buttons are generally pushed or knob, but we are going to introduce this Button which is a touch button, it has been widely used in multimedia devices, not only easy to use, and will make your device looks more fashionable.

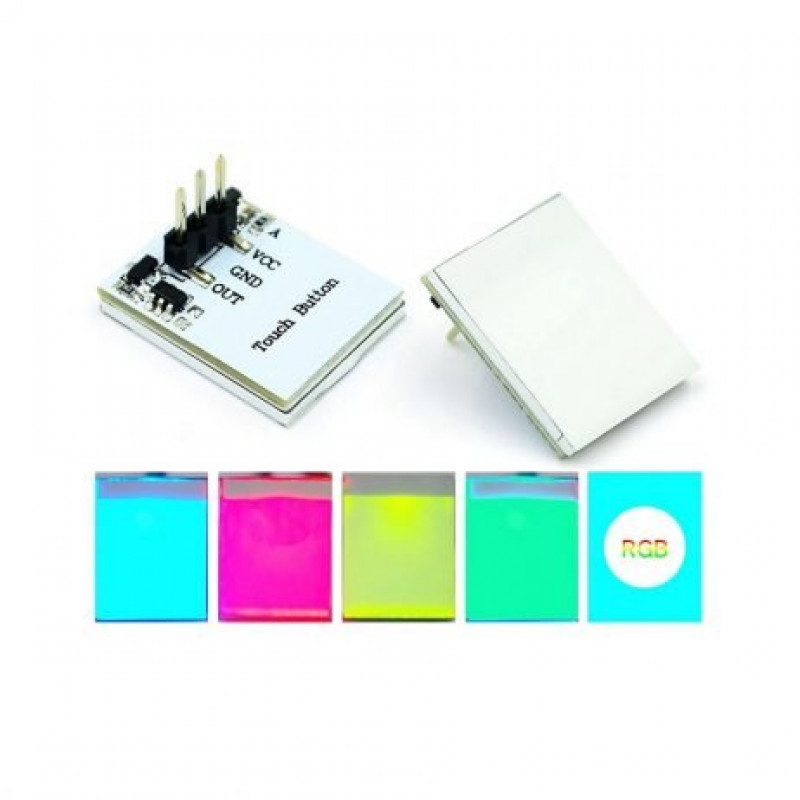

This HTTM (heltec touch model) capacitive touch button will generally have a variety of colors, this is white, is a conventional type, a model is HTDS-SCR. Its anti-interference ability, without any mechanical parts, reducing wear, The service life is very long, reducing the cost of the latter part of the maintenance of the product, it can be placed on the insulation behind the insulation layer, which is more conducive to the production of waterproof equipment.
Even you can modify the back of the resistance, which can adjust the signal output mode. It has a wide voltage input range, suitable for + 2.7v ~ +6 v, the signal output voltage is +3.3v, can be directly used in the drive relay, optocoupler led lights, and other components.

Applications:
  1. Range hood operation panel
  2. Touch switch
  3. Handheld home air environment detector
  4. The keyboard of the industrial control device with waterproof function
  5. Car equipment
  6. Bluetooth test stand information display

Features:

  1. Strong anti-jamming capability, built-in anti-jamming algorithm
  2. Will not wear, long service life
  3. Touch-sensitive, no delay, flicker, and other adverse reactions
  4. Wide voltage input range, the application of many occasions

Package Includes:

1 x Capacitive Touch Switch HTTM Touch Button Sensor Module



Specifications :-

Color

White

Input Voltage Range

2.7 to 6

Output Voltage (VDC)

3.3

Operating Temperature Range (C)

-30 to +70

Length (mm)

15

Width (mm)

15

Height (mm)

3

Weight (gm)

10

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 149.86 (Inclusive of all Taxes)
