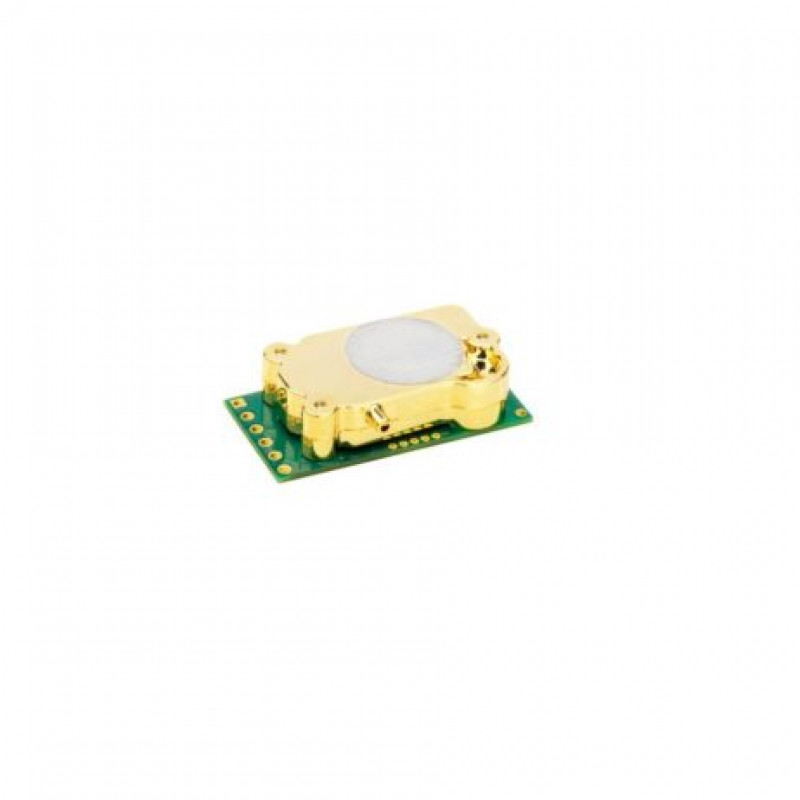

Telaire T6713 CO2 Module is ideal for applications where accurate CO2 levels need to be measured and controlled for indoor air quality and energy-saving applications, such as demand control ventilation.
Features:
- An affordable gas sensing solution for OEMs
- Eliminates the need for calibration in most applications with Telaires patented ABC Logic TM software. Lifetime calibration warranty
- A reliable sensor design based on 20 years of engineering and manufacturing expertise
- Flexible CO2 sensor platform designed to interact with other microprocessor devices
- Compact design and versatile interface options for simple product integration
Specifications:
- Measurement Range: 0 to 5000 ppm
- Dimensions: 30mm x 15.6mm x 8.6mm
- Accuracy: 400-5000 ppm +/- 30 ppm 3% of reading
- Temperature Dependence: 5 ppm per C or 0.5% of the reading per C,
- Stability: < 2% of FS over life of sensor (15 years typical)
- Pressure Dependence: 0.13% of reading per mm Hg
- Calibration Interval: Not required
- Response Time: < 3 minutes for 90% step change typical
- Signal Update: Every 5 seconds
- Warm Up Time
- < 2 minutes (operational)
- 10 minutes (maximum accuracy)
- Operating Conditions
- 14F to 140F (-10C to 60C)
- 0 to 95% RH, non-condensing
- Storage Conditions: -22F to 158F (-30C to 70C)
Package Includes:
1 x AMPHENOL ADVANCED SENSORS Gas Detection Sensor, Carbon Dioxide, 2000 ppm, 3 %, Non-dispersive Infrared (NDIR)
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 11149.82 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
AMPHENOL ADVANCED SENSORS Gas Detection Sensor, Carbon Dioxide, 2000 ppm, 3 %, Non-dispersive Infrared (NDIR)
- Product Code: EC-18086
- Availability: 3
-
Rs.9260.00
- (Excluding 18% GST)
