AFM3001 measures the mass flow of air, oxygen, and other non-corrosive gases with high accuracy. A self-developed thermal sensor chip and a high-performance CMOS microprocessor integrated with 24-bit AD acquisition are adopted in AFM3001. The special air duct of AFM3001 reduces the pressure loss of the measured gas, which makes it suitable for various harsh scenarios.
AFM3001 can measure bidirectionally and aslo measure the temperature and humidity of the gas.
Applications:
AFM3001 is designed especially for ventilator applications. Besides it can be widely used in environmental monitoring systems, fuel control systems, fuel cell control systems, and other scenarios.
Features:
- Low-pressure loss
- Small zero-point drift
- Measure bidirectionally
- Fast response
- Measurement range: 200slm
- Read the temperature and humidity
- Full calibration and temperature compensation
Packages Include:
1 x AFM3100 Flow Sensor
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

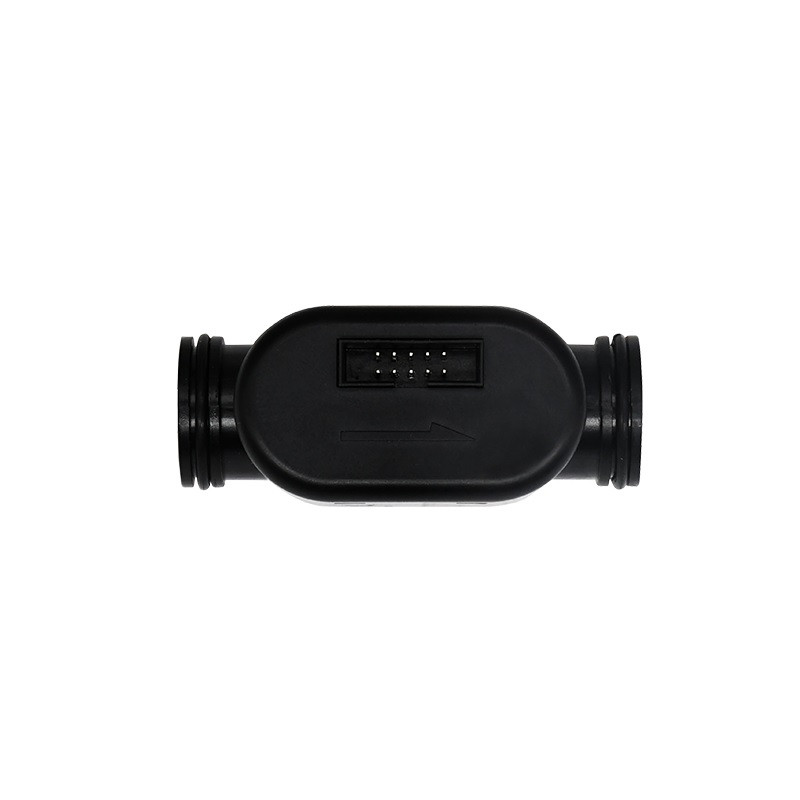

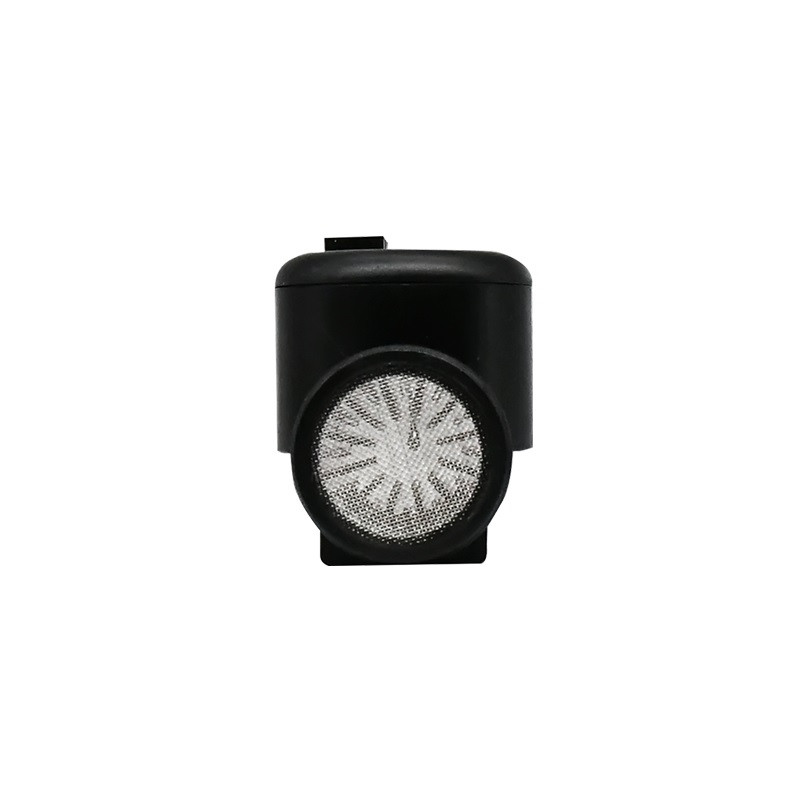

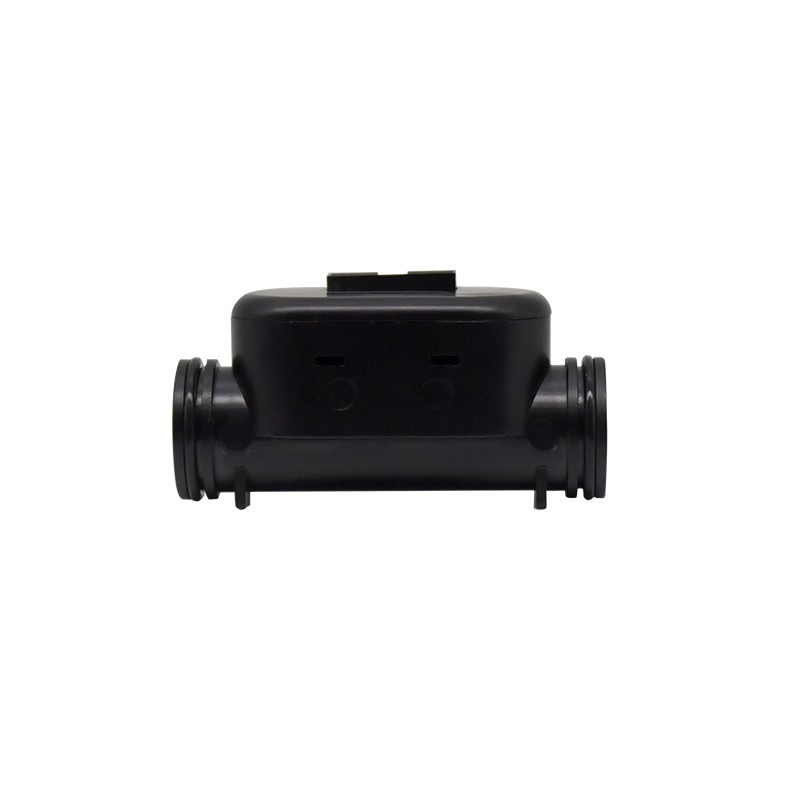

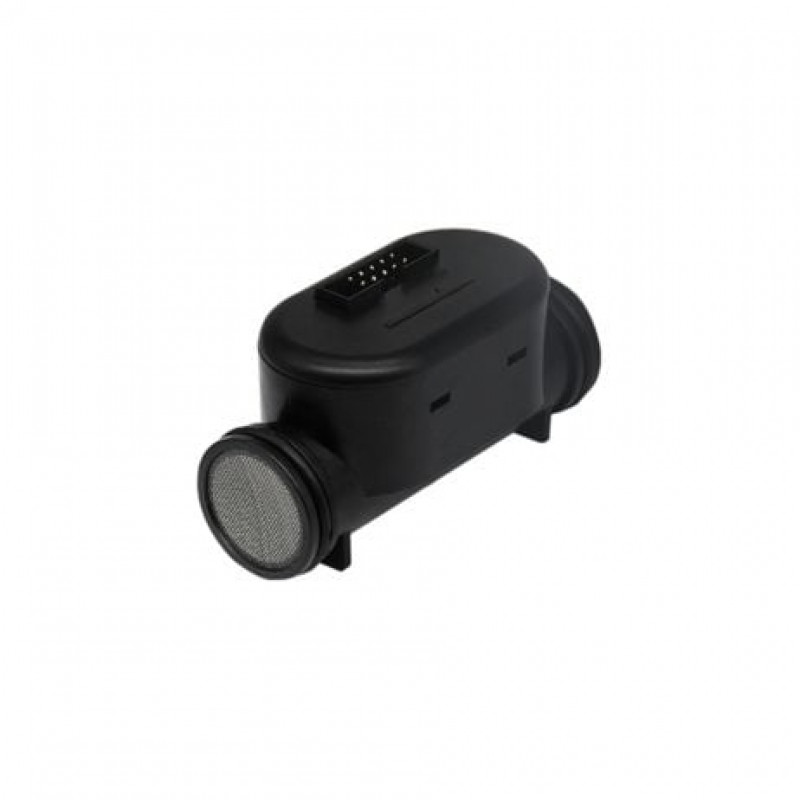

AFM3100 Flow Sensor
- Product Code: EC-21048
- Availability: 1
-
Rs.9632.00
- (Excluding 18% GST)
