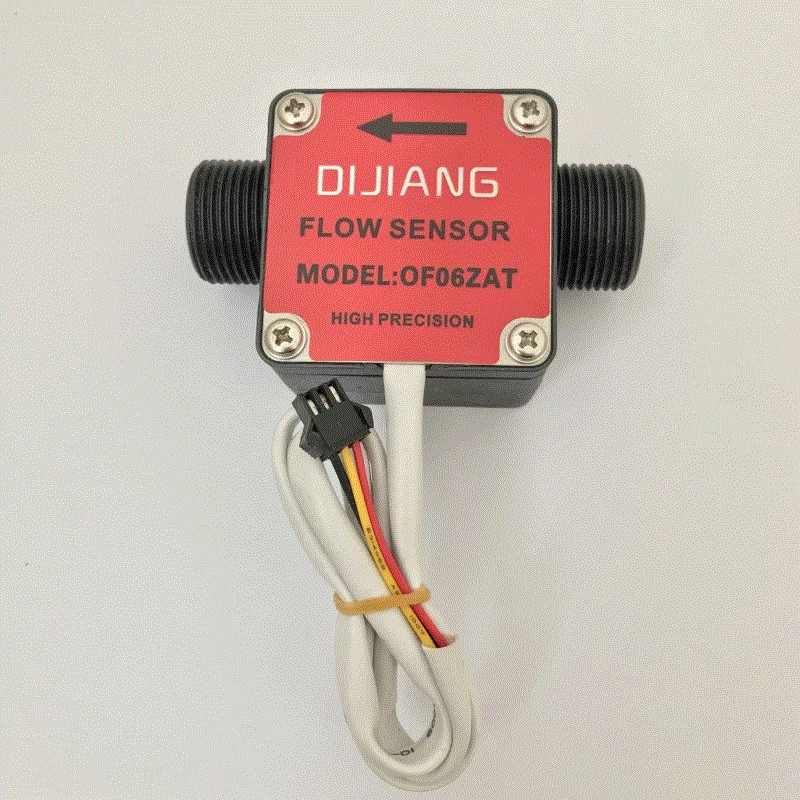

OF06ZAT G3/4 DN20 Water Flow Sensor includes a plastic body housing, rotor / Oval gear, and a hall-effect sensor, and PCB electronics board. When the water/liquid flows through the (oval gear) rotor, then the rotor is rolled. Its speed changes with different rates of flow. Then the magnetic rotor makes a reaction to the Hall sensor, the hall-effect sensor outputs the corresponding pulse signal.
Features:
- Flow range : 0-50LPM
- Flow sensor connecting type: G 3/4
- Accuracy: 0.5%
- Working environmental: milk, liquid,light oil, diesel
- Material: RoHs,no-toxic
- Structure:Splash-proof structure (IP64 compatible) for indoor use
- Open collector output:Open collector pulse (Capacity: 6 mA DC or less)
Package Includes:
1 x OF06ZAT G3/4 DN20 Water Flow Sensor (Sea)
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
OF06ZAT G3/4 DN20 Water Flow Sensor (Sea) Liquid Like Milk Diesel Gasoline Solene Gasolene Benzine Petrol Oil Flow Meter
- Product Code: EC-25103
- Availability: Out Of Stock
-
Rs.1734.00
- (Excluding 18% GST)
