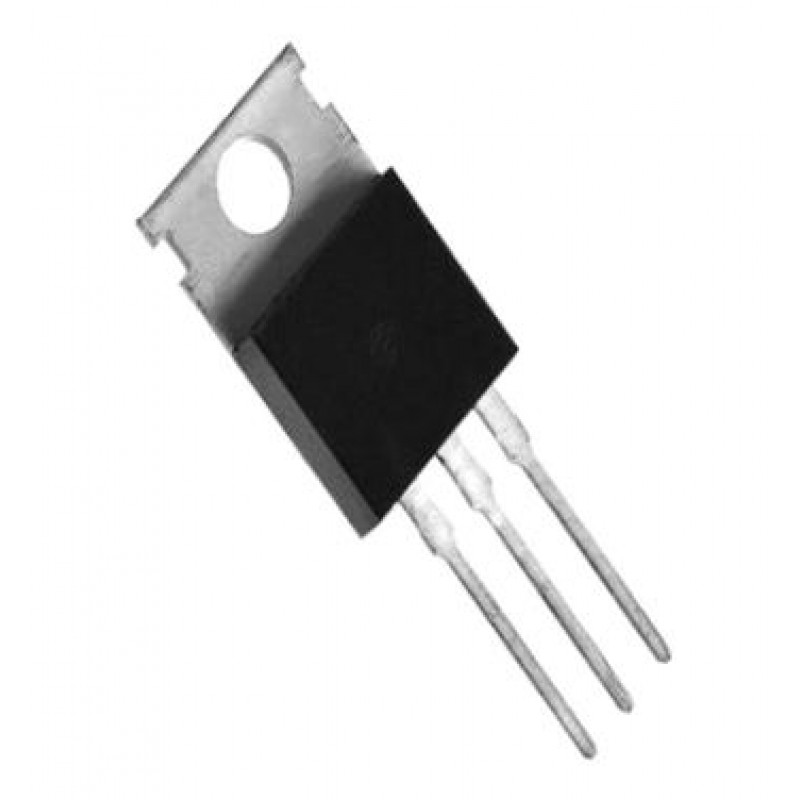

• TIP31C NPN Bipolar Power Transistor 100V 3A TO-220 Package

TIP31C is a three layer NPN device within the working range, the collector current IC is a function of the base current IB, a change in the base current giving a corresponding amplified change in the collector current for a given collector emitter voltage VCE.


Features:-

• Low saturation voltage

• Simple drive requirements

• High safe operating area

• For low distortion complementary designs

• Easy to carry and handle


Detailed Specifications:-

Transistor Polarity NPN
Collector−Emitter Voltage (VCEO) 40VDC
Collector−Base Voltage (VCBO) 40VDC
Continuous Collector Current (Ic) 3ADC
Continuous Base Current (Ib) 1ADC
Emitter Base Voltage (VEBO) 5VDC
Power Dissipation (Pd) 40W
Operating Temperature Range -65 - 150°C
DC Current Gain (hFE) 10-50


Related Documents:-

 TIP31C Transistor Datasheet

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
