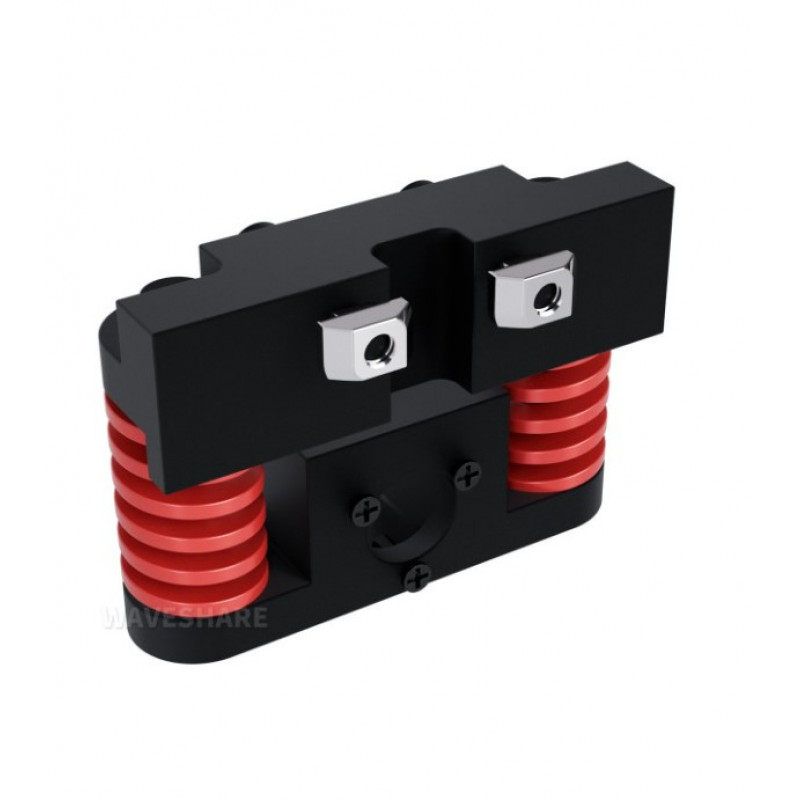

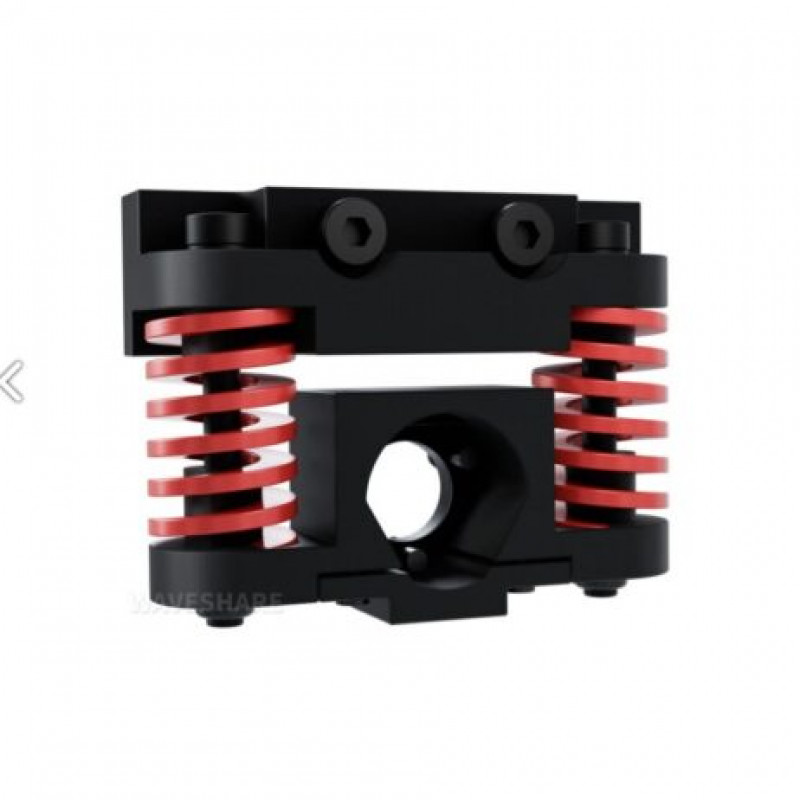

The UGV Suspension (A) is an all-metal, compact suspension system designed for mobile robotic applications. It is specifically compatible with the DDSM115 hub motor and features a high-strength spring, making it ideal for use in both Unmanned Ground Vehicles (UGV Suspension (A)) and Automated Guided Vehicles (AGV). Its compact design facilitates easy installation, reducing overall design complexity.
Features:
- Material: All-metal construction for durability.
- Load Capacity: 7.5KG (static load).
- Compatible Hub Motor: DDSM115.
- Compact Design: Space-efficient structure saves chassis space.
- Easy Installation: Comes with 20 Series European Standard T-nuts for straightforward mounting on aluminum profiles.
- Versatile Applications: Suitable for both aluminum profile chassis and fully enclosed chassis designs.
- Reserved Wiring Slot: Designed to keep wiring neat and organized.
- Open-source Models: Provides resources for secondary development of chassis designs.
Specifications:
- Load Capacity: 7.5KG
- Static Load Capacity Reference: 30KG for a 4-wheel chassis
- Application Scenarios: UGV and AGV chassis designs
- Installation Method: Can be installed by cutting holes in the chassis body for advanced users.
Package include:
1 x Waveshare All-metal Compact UGV Suspension (A), High-strength Spring, 7.5KG Load Capacity, Suitable for DDSM115 Hub Motor
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Waveshare All-metal Compact UGV Suspension (A), High-strength Spring, 7.5KG Load Capacity, Suitable for DDSM115 Hub Motor
- Product Code: EC-30010
- Availability: Out Of Stock
-
Rs.2753.00
- (Excluding 18% GST)
